Hirose Electric Co Ltd FX2CA-20S-1.27DSA(71) — Centronics Connectors
Hirose Electric Co Ltd

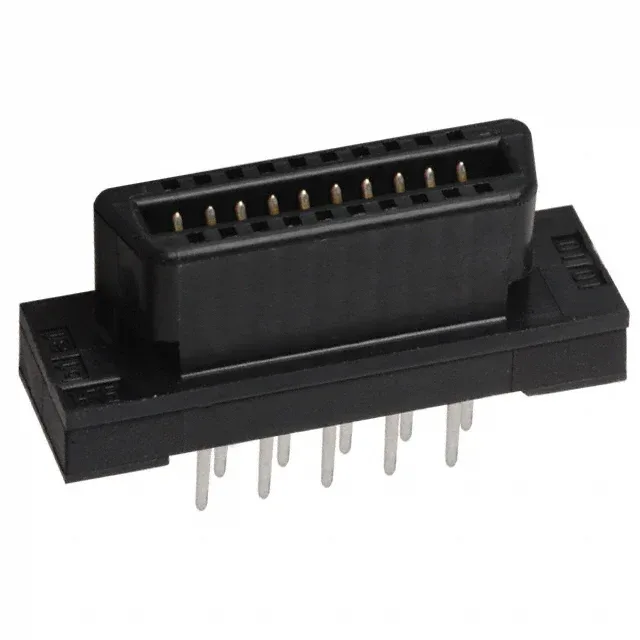

Hirose FX2CA-20S-1.27DSA(71) Receptacle, 20 Pos

MPNFX2CA-20S-1.27DSA(71)
Active

Hirose FX2 series board-to-board receptacle, 20 positions, 1.27 mm pitch, 2 rows, through-hole, gold-plated contacts, outer shroud style.

$3.4800Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FX2CA-20S-1.27DSA(71) Technical Specifications
ParameterValue
TypeBoard to Board
SeriesFX2
MountingThrough Hole
Connector typeOuter Shroud Contacts
PackageTray
TerminationSolder
Contact finishGold
Rows2
Positions20
Contact finish thickness7.87µin (0.200µm)

Product details

Board-to-Board Receptacle with Outer Shroud Contacts

The Hirose FX2CA-20S-1.27DSA(71) is a 20-position board-to-board receptacle from the FX2 series, designed with outer shroud contacts that wrap around the mating interface. Through-hole termination locks the connector into the PCB for mechanical stability in the stack.

What Mates with This Receptacle?

This receptacle mates with the corresponding FX2 series header — look for the FX2BA or FX2CA header variant with the same 20-position, 1.27 mm pitch, dual-row layout. The outer shroud on the receptacle accepts the header's pin blade, providing alignment and a degree of EMI containment between the boards. Confirm the header's stacking height matches your board-to-board gap before specifying.

Frequently asked questions

Where can I buy FX2CA-20S-1.27DSA(71) and how do I get a price?

Submit a quote request for current pricing and availability — confirmed at quote time.

What is the mating connector for FX2CA-20S-1.27DSA(71)?

It mates with a 20-position, 1.27 mm pitch, dual-row header from the Hirose FX2 series, such as the FX2BA or FX2CA header variant. The outer shroud on this receptacle accepts the header's pin blade.

Is FX2CA-20S-1.27DSA(71) RoHS compliant?

Yes, it is ROHS3 compliant.
