Hirose Electric Co Ltd FX8-120P-SV(71) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

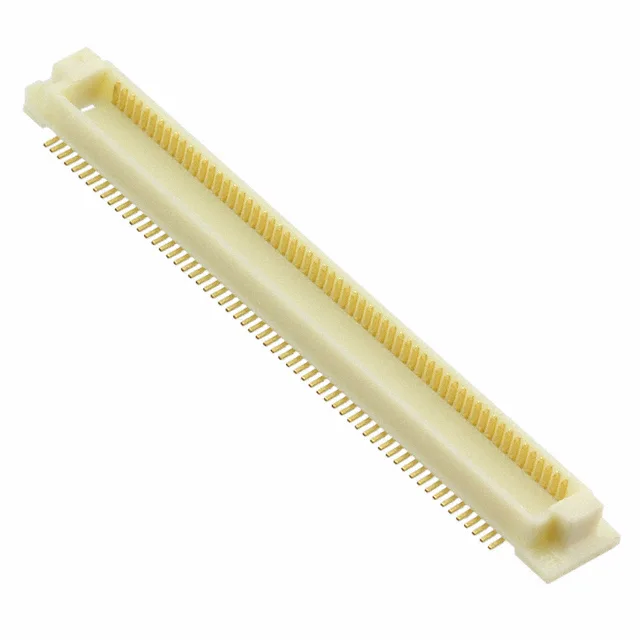

Hirose FX8-120P-SV(71) FunctionMax™ Header, 120 Pos

MPNFX8-120P-SV(71)
Active

Hirose FunctionMax™ FX8, Header Outer Shroud Contacts, 120 positions, 0.024" (0.60 mm) pitch, 2 rows, Surface Mount, Gold contact finish, 0.112" (2.85 mm) height above board, Tray.

$4.7200Ref. price · indicative, final on quote
FX8-120P-SV(71) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FX8-120P-SV(71) Technical Specifications
ParameterValue
SeriesFunctionMax™ FX8
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.112\" (2.85mm)
Mated stacking heights3mm
Pitch0.024\" (0.60mm)
PackageTray
FeaturesBoard Guide
Contact finishGold
Rows2
Positions120

Product details

0.60 mm Pitch Mezzanine Header, 120 Positions, 3 mm Stack

Surface-mount termination keeps the footprint compatible with standard reflow processes, and the integral board guide takes shear loads off the signal pins during assembly.

Packaging Variants: Tray vs Tape & Reel vs Tube

This FX8-120P-SV(71) ships in Tray packaging. Two electrically identical siblings exist: the FX8-120P-SV(92) in Tape & Reel (also Cut Tape and Digi-Reel®), and the FX8-120P-SV(91) in Tube. All three carry the same 0.60 mm pitch, 120 positions, gold finish, and 2.85 mm height. The packaging choice affects pick-and-place feeder compatibility and minimum order quantity — not the electrical or mechanical fit.

The part is ROHS3 compliant.

Frequently asked questions

Where can I buy the FX8-120P-SV(71) available via RFQ confirmation?

Availability is confirmed at quote time — submit an RFQ for current pricing and lead time.

What is the mating connector for the FX8-120P-SV(71)?

The FX8-120P-SV(71) mates with a matching FunctionMax™ FX8 receptacle housing. The mated pair achieves a 3 mm stacking height.

What is the stacking height of the FX8-120P-SV(71)?

The header stands 0.112" (2.85 mm) above the board. When mated with the corresponding FX8 receptacle, the total mated stacking height is 3 mm.

Is the FX8-120P-SV(71) RoHS compliant?

Yes, the FX8-120P-SV(71) is ROHS3 Compliant.
