The Hirose FX8-60S-SV(21) is a 60-position receptacle from the FunctionMax™ FX8 series, designed as the mating half for the FX8 header family. The SMT termination and gold contact finish suit it for high-density signal routing where the board-to-board gap is tight. The 0.089" (2.26mm) height above board and the supported mated stacking heights of 3mm and 4mm mean this receptacle pairs with the matching FX8 header to set the exact board spacing.

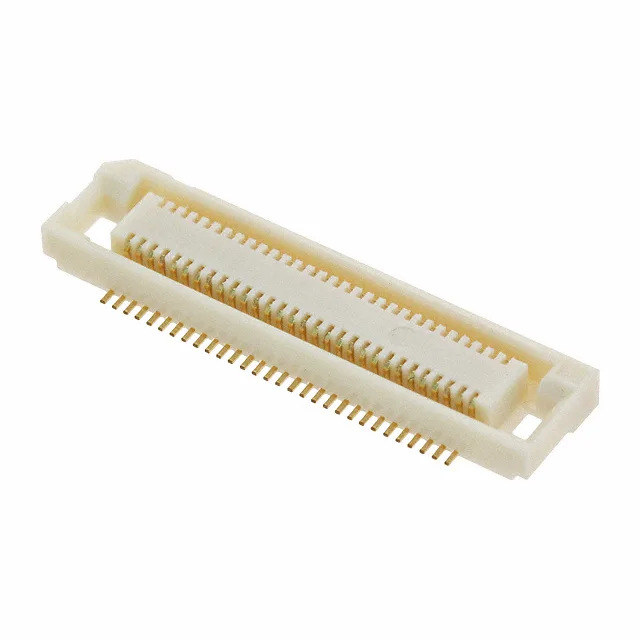

Hirose FX8-60S-SV(21) FunctionMax™ Receptacle, 60 Pos
MPNFX8-60S-SV(21)
Active
Hirose FunctionMax™ FX8 receptacle, center strip contacts, 60 positions, 2 rows, 0.024" (0.60mm) pitch, SMT, gold contact finish, 0.089" (2.26mm) height above board, tube package.
$3.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFunctionMax™ FX8
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FunctionMax™ FX8 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.089\" (2.26mm) |
| Mated stacking heights | 3mm, 4mm |
| Pitch | 0.024\" (0.60mm) |
| Package | Tube |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 60 |
Product details
Frequently asked questions
What is the mated stacking height for FX8-60S-SV(21)?
The FX8-60S-SV(21) receptacle supports mated stacking heights of 3mm and 4mm when paired with the appropriate FX8 header. The 0.089" (2.26mm) height above board of this receptacle combines with the header height to set the gap.
What connector mates with FX8-60S-SV(21)?
The mating half is the FX8-60P-SV(91), a 60-position header with outer shroud contacts from the same FunctionMax™ FX8 series. The two parts together set the 3mm or 4mm board-to-board stack height.
