What the GT5W-1P/S-R Retainer Does in the Assembly

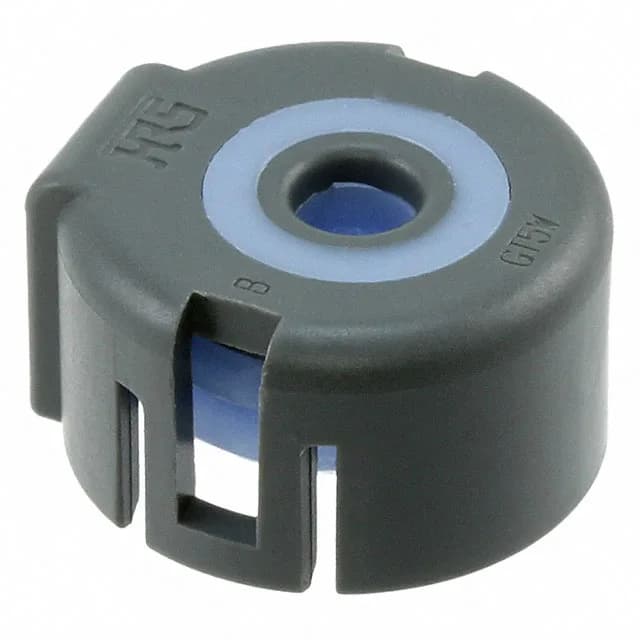

The Hirose GT5W-1P/S-R is a retainer accessory for the GT5 series of waterproof connector housings. Its job is to lock the crimped terminals into the housing cavity after they are inserted, preventing back-out from cable strain or vibration. It fits GT5 housings and is made from a gray Polybutylene Terephthalate (PBT) body — a material that holds up to moisture and typical under-hood temperatures without creeping. The retainer itself is listed as waterproof, meaning it keeps the seal intact when installed in the matching GT5 housing assembly.
The waterproof feature on the retainer means it is part of a sealed system — the GT5 housing with this retainer installed maintains the IP rating of the overall connector assembly. The PBT body resists gasoline, oil, and dilute acids, so this retainer is suited for engine bay or outdoor equipment harnesses where the connector sees splash or washdown. Gray is the standard color for this part number; it visually distinguishes the retainer from the housing shell during assembly.
