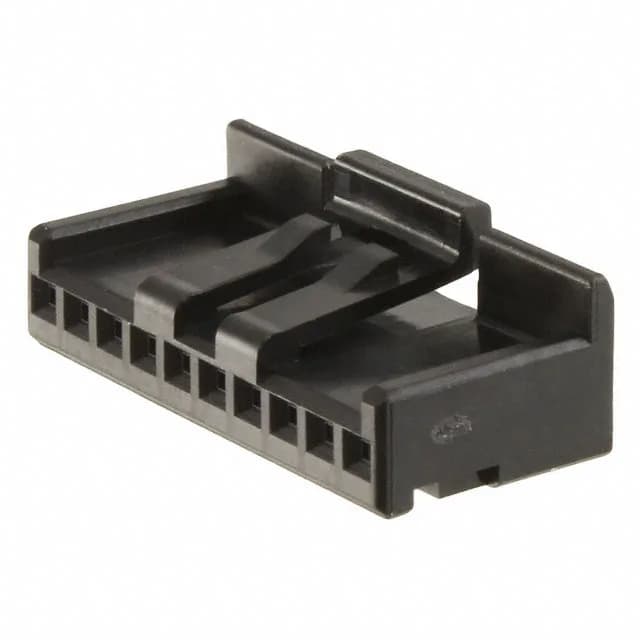

Wire-to-Board Plug Housing for 10-Circuit Harnesses
The 2.00 mm pitch is tighter than the common 2.54 mm (0.100") spacing, so the board footprint for the mating header is more compact — verify that the PCB land pattern matches this pitch before committing the layout.
Housing Material and Operating Range
The housing is moulded from polybutylene terephthalate (PBT), a material with good dimensional stability and chemical resistance for industrial environments.
Contacts Are Ordered Separately — Plan the BOM
Factor the terminal part number and quantity into the BOM alongside the housing to avoid a last-minute parts shortage on the assembly line.
Mating Half and Latch Lock Retention
The latch lock engages with a positive click when fully seated — the lock provides vibration resistance without requiring a secondary screw or clip. For field service, the latch releases by pressing the tab, allowing the harness to be disconnected without tools.
Position Count Options in the GT8E Series
The GT8E series includes plug housings in 4, 5, 8, and 10 positions, all sharing the same 2.00 mm pitch, single-row layout, latch lock, and black PBT housing. The 10-position GT8E-10S-HU is the highest circuit count in this group — if the BOM calls for fewer circuits, the GT8E-8S-HU (8 positions), GT8E-5S-HU (5 positions), or GT8E-4S-HU (4 positions) are the direct drop-in alternatives with the same footprint width per position.
