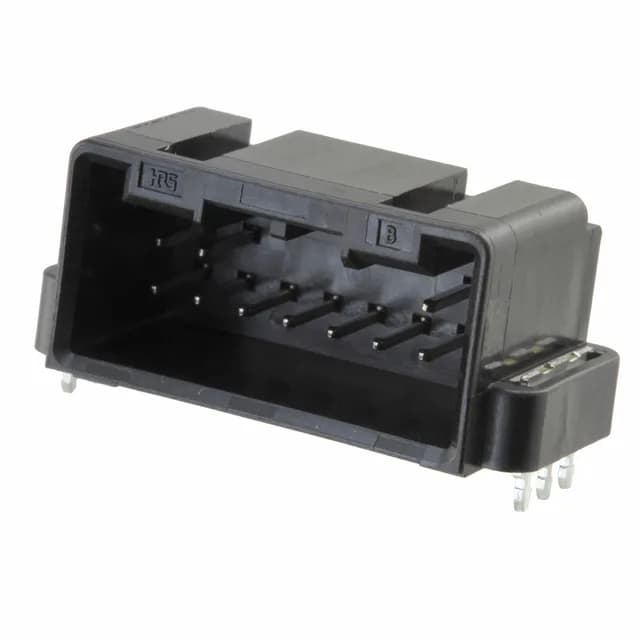

Hirose Electric Co Ltd GT8E-12DP-2H
MPNGT8E-12DP-2H
Obsolete
$3.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | GT8E |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.403\" (10.23mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Board Lock |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
