Hirose Electric Co Ltd H2.4-LR-SR2 — RF Cable Assemblies

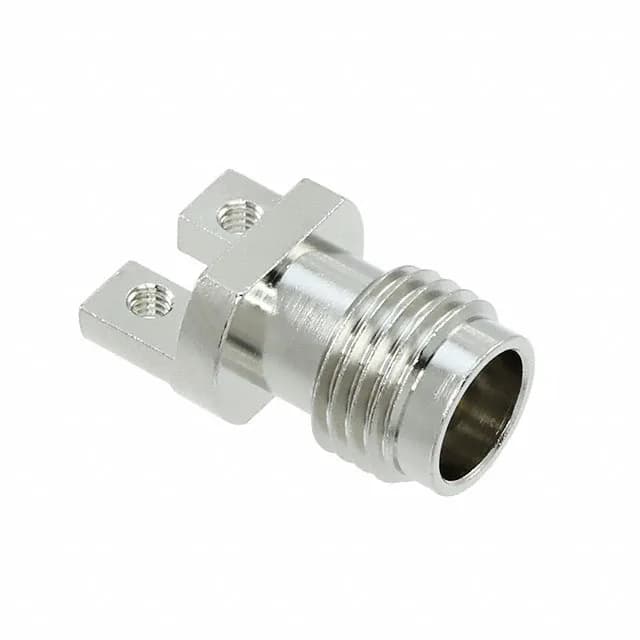

Hirose H2.4-LR-SR2 2.4mm Receptacle, 50 Ohm, 50 GHz

MPNH2.4-LR-SR2
Active

Hirose 2.4mm Series H2.4-LR-SR2, Receptacle, Female Socket, 1 Port, 50 Ohms, DC to 50 GHz, Board Edge / End Launch, Compression Termination, Gold Center Contact.

$18.1800Ref. price · indicative, final on quote
Hirose Electric Co Ltd H2.4-LR-SR2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H2.4-LR-SR2 specifications
ParameterValue
Series2.4mm
MountingBoard Edge, End Launch
Connector type2.4mm (APC-2.4, OS-50)
Fastening typeThreaded
Frequency - max50 GHz
Operating temperature-55°C ~ 105°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationScrew
Contact terminationCompression
Center contact platingGold

Product details

50 GHz End-Launch Receptacle for Precision Microwave Interconnects

The Hirose H2.4-LR-SR2 is a 2.4mm (APC-2.4, OS-50) receptacle, female socket, designed for board-edge end-launch mounting. Rated to 50 GHz with a 50 Ohm impedance, this connector uses a PTFE dielectric and a gold-plated beryllium copper center contact to maintain signal integrity across the full DC-to-millimeter-wave band.

What the 50 GHz Bandwidth Means for the Signal Path

Rated to 50 GHz with 50 Ohm impedance, the end-launch mounting minimizes stub length to maintain bandwidth.

Mating Cycles and Contact Construction

Beryllium copper provides the spring force needed for consistent contact resistance over repeated mates without taking a set, and the gold plating prevents oxidation on the mating surface. The compression termination on the center contact and screw termination on the shield mean no soldering is required at the connector — the cable or PCB trace is clamped, which is faster for prototyping and field replacement.
