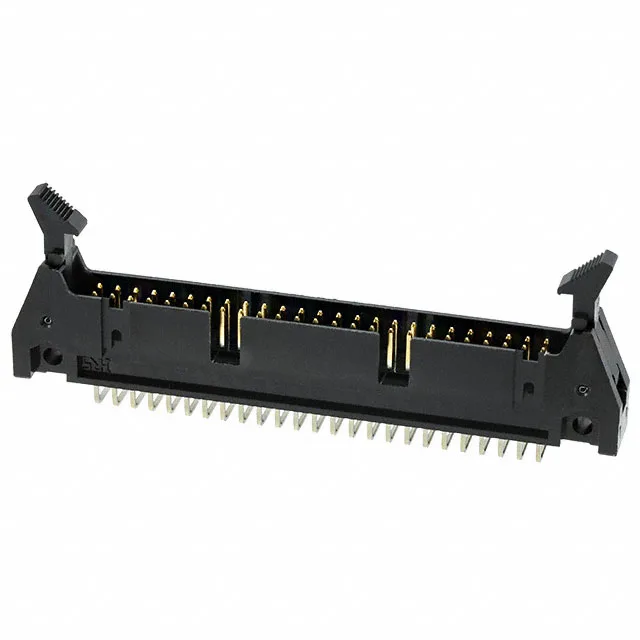

Hirose Electric Co Ltd HIF3BA-50PA-2.54WB(71)
MPNHIF3BA-50PA-2.54WB(71)
Obsolete
$11.0600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HIF3B |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
