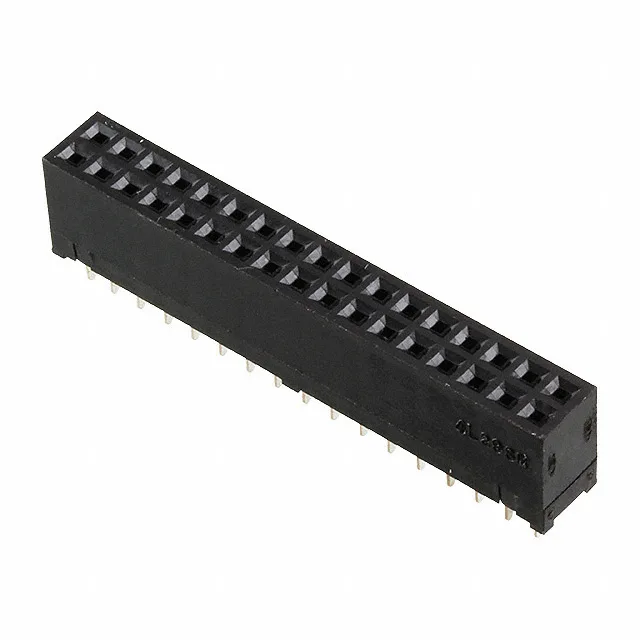

Hirose Electric Co Ltd HIF3H-34DA-2.54DSA(71)
MPNHIF3H-34DA-2.54DSA(71)
Obsolete
$6.7829Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HIF3H |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Voltage rating | 300VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.374\" (9.50mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
