Hirose Electric Co Ltd HIF6-80D-1.27R(20) — Panel-Mount & In-Line Circular
Hirose Electric Co Ltd

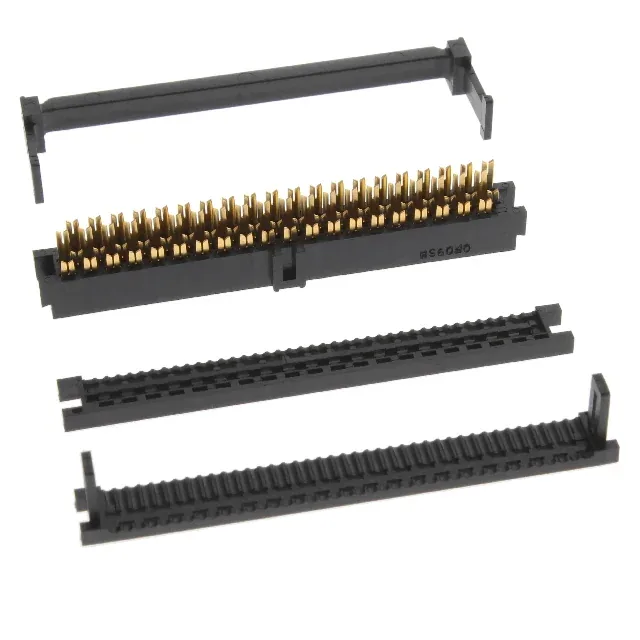

Hirose HIF6-80D-1.27R(20) 80-Position IDC Receptacle

MPNHIF6-80D-1.27R(20)
Active

Hirose HIF6 series IDC receptacle, 80 positions, 0.050" (1.27mm) pitch, dual-row, 28 AWG ribbon cable, gold female sockets, free-hanging, black, tray.

$7.6100Ref. price · indicative, final on quote
HIF6-80D-1.27R(20) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

HIF6-80D-1.27R(20) Technical Specifications
ParameterValue
SeriesHIF6
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.050\" (1.27mm)
PackageTray
FeaturesFeed Through, Strain Relief
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions80

Product details

80-Position IDC Receptacle for 28 AWG Ribbon Cable

The Hirose HIF6-80D-1.27R(20) is an 80-position IDC receptacle from the HIF6 series, designed to mass-terminate 28 AWG ribbon cable in a single press operation. The 0.050" (1.27mm) pitch matches the conductor spacing of standard 28 AWG ribbon cable, so each of the 80 positions lands directly on a conductor without fanout. The free-hanging (in-line) mounting style and integral strain relief let the connector sit anywhere along the cable run, not just at the board edge. The feed-through feature allows the ribbon cable to pass straight through the body, supporting daisy-chain topologies where one cable serves multiple receptacles.

It is ROHS3 compliant.

Frequently asked questions

What is the mating connector for HIF6-80D-1.27R(20)?

The HIF6-80D-1.27R(20) is a receptacle that mates with the corresponding HIF6 series pin header. The mating half uses the same 0.050" (1.27mm) pitch and dual-row layout. Confirm the header's position count (80 positions) and mounting style (through-hole or SMT) against your board layout before ordering.
