Hirose Electric Co Ltd HR10-7R-6PA(73) — Circular Cable Assemblies
Hirose Electric Co Ltd

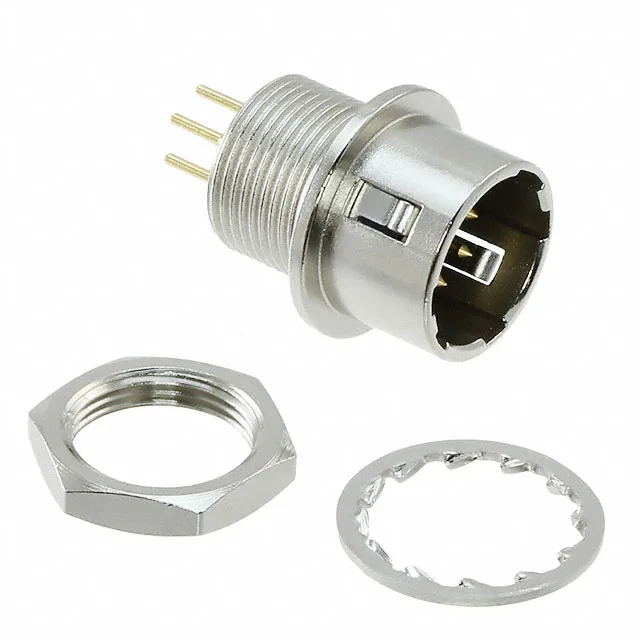

Hirose HR10-7R-6PA(73) 6-Pin Circular Receptacle, 2A, 100VAC

MPNHR10-7R-6PA(73)
Active

Hirose HR10 series, HR10-7R-6PA(73), 6-position circular receptacle with male pins, panel mount through hole, solder termination, push-pull fastening, gold-plated brass contacts, rated 2A, 100VAC/140VDC, shell size 7, silver shell finish.

$13.9800Ref. price · indicative, final on quote
HR10-7R-6PA(73) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

HR10-7R-6PA(73) Technical Specifications
ParameterValue
SeriesHR10
MountingPanel Mount, Through Hole
Connector typeReceptacle, Male Pins
Fastening typePush-Pull
Voltage rating100VAC, 140VDC
Current rating2A
Mounting featureBulkhead - Rear Side Nut
Operating temperature-25°C ~ 85°C
ColorSilver
Shell materialZinc Alloy
Insert materialPolyamide (PA), Nylon
Contact materialBrass
Primary materialMetal
PackageTray
ShieldingUnshielded
OrientationKeyed
TerminationSolder
ApplicationsIndustrial, Medical
Shell finishNickel
Positions6
Shell size - insert7
Contact finish - matingGold
Contact finish thickness - mating8.00µin (0.203µm)

Product details

6-Position Panel-Mount Receptacle for Signal-Level Industrial Interconnect

The Hirose HR10-7R-6PA(73) is a 6-position circular receptacle with male pins from the HR10 series, designed for panel-mount applications where a compact, push-pull locking connector is needed. It carries a 2 A per-contact current rating and a voltage rating of 100VAC / 140VDC, placing it firmly in the signal-level interconnect category — suited for control, sensor, and instrumentation wiring in industrial and medical equipment.

Mounting and Mating: Panel Bulkhead with Solder Tails

The push-pull fastening mechanism allows quick blind-mating in tight enclosures — a common requirement for medical carts, test fixtures, and industrial control panels. The keyed orientation prevents misalignment during mating, which is critical when the connector is installed behind a panel and the user cannot see the pin pattern.

Frequently asked questions

Where can I buy the HR10-7R-6PA(73) connector and get a price?

Submit a request for quote to confirm current pricing and availability for your required quantity.

What is the mating connector for the HR10-7R-6PA(73)?

The HR10-7R-6PA(73) is a male-pin receptacle, so it mates with a female-socket plug from the same HR10 series, such as the HR10-7R-6SA(73). Both use the same shell size 7 and push-pull latching.
