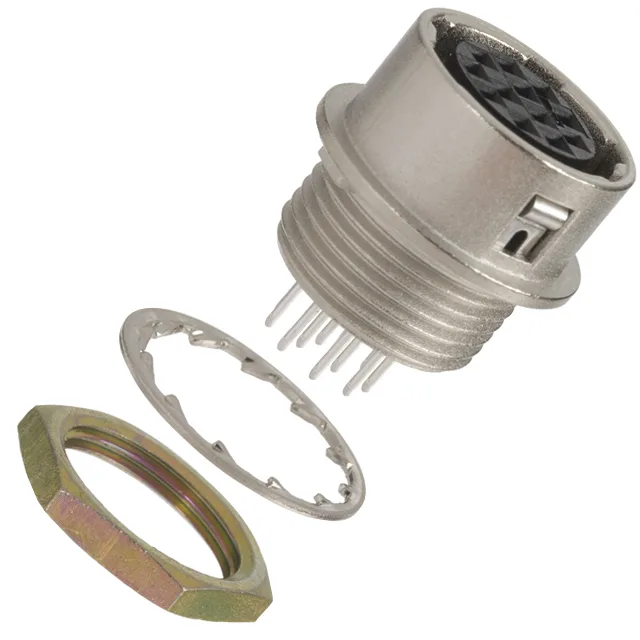

Hirose Electric Co Ltd HR10A-10R-12SB(71) — Circular Cable Assemblies
Hirose Electric Co Ltd

Hirose HR10A-10R-12SB(71) Receptacle, 12-Position, 2A

MPNHR10A-10R-12SB(71)
Active

Hirose HR10A series, HR10A-10R-12SB(71), 12-position circular receptacle, female sockets, 2 A, 100 VAC / 140 VDC, push-pull fastening, solder termination, panel mount with rear-side nut, silver-plated contacts, nickel shell.

$11.2400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

HR10A-10R-12SB(71) Technical Specifications
ParameterValue
SeriesHR10A
MountingPanel Mount, Through Hole
Connector typeReceptacle, Female Sockets
Fastening typePush-Pull
Voltage rating100VAC, 140VDC
Current rating2A
Mounting featureBulkhead - Rear Side Nut
Operating temperature-25°C ~ 85°C
ColorSilver
Shell materialZinc Alloy
Insert materialPolybutylene Terephthalate (PBT)
Contact materialPhosphor Bronze
Primary materialMetal
Material flammability ratingUL94 V-0
PackageTray
ShieldingUnshielded
OrientationKeyed
TerminationSolder
Shell finishNickel
Positions12
Shell size - insert10
Contact finish - matingSilver
Contact finish thickness - mating78.7µin (2.00µm)

Product details

Panel-Mount Circular Receptacle, 12 Female Sockets

The Hirose HR10A-10R-12SB(71) is a 12-position circular receptacle from the HR10A series, designed for panel-mount applications where a compact, push-pull locking interconnect is needed. It carries 12 female sockets arranged in a shell size 10 insert, terminated via solder cups to the rear of the panel. The push-pull fastening type gives a positive lock without requiring a threaded coupling ring — a clean mate and release for front-panel or bulkhead connections where tool access is limited.

The through-hole solder termination accepts discrete wires; the shell material is zinc alloy with a nickel finish. The keyed orientation prevents rotational misalignment during mating — the insert is fixed, so the mating plug must align to the keyway.

Frequently asked questions

What is the mating connector for HR10A-10R-12SB(71)?

The mating half is a HR10A series plug with male pins, same shell size 10 and push-pull fastening. The HR10A-10R-12PB(71) is the 12-position male-pin receptacle variant; the corresponding plug (male pins, cable-mount) would be the HR10A-10P-12P or similar HR10A plug with 12 male contacts. Confirm the exact plug order code against your cable assembly requirements.

Is HR10A-10R-12SB(71) RoHS compliant?

Yes, the HR10A-10R-12SB(71) is ROHS3 compliant per the manufacturer's listing.
