Panel-Mount Shielded Receptacle for Signal Runs

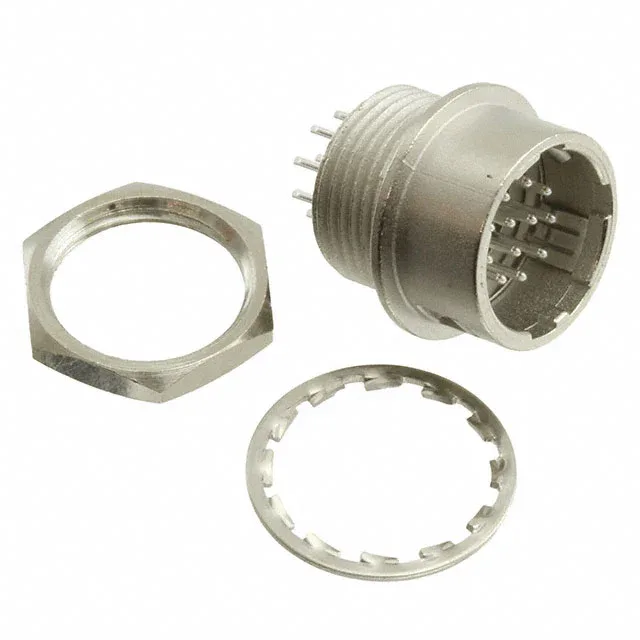

The Hirose HR10G-10R-12PB(71) is a 12-position shielded receptacle with male pins from the HR10G series, designed for panel-mount applications where a compact, push-pull circular connector is needed. It carries 2 A per contact at 100 VAC or 140 VDC, making it a signal-level interconnect suited for sensor feeds, encoder lines, and control signals in industrial enclosures. The nickel-plated zinc alloy shell provides continuous shielding when mated, and the push-pull fastening lets you disconnect by pulling straight on the plug body — no threaded collar to unscrew in tight cabinet spaces.
The 2 A per contact rating reflects the signal-duty design — each phosphor bronze pin with 78.7 µin silver mating finish carries enough current for typical 24 VDC sensor loops or low-power instrumentation circuits, but this is not a power-distribution connector. The 100 VAC / 140 VDC voltage rating gives headroom for industrial control voltages (24 V, 48 V, 120 VAC) without derating concern. The keyed orientation prevents mismating in multi-connector panels, and the bulkhead mounting with a rear-side nut secures the receptacle to the panel cutout before the cable plug is mated.
Shielded vs Unshielded: HR10G vs HR10A
The HR10G-10R-12PB(71) is the shielded version of the same 12-position receptacle footprint. The HR10A-10R-12PB(71) shares the same 12 positions, 2 A rating, and push-pull coupling but omits the shielding — its shell is unshielded. If your harness runs near VFDs, switching power supplies, or motor drives, the HR10G's shielded shell gives a continuous ground path through the panel bulkhead that the HR10A lacks. Both use the same panel cutout and mating plug, so swapping between them is a shell-level decision, not a footprint change.
