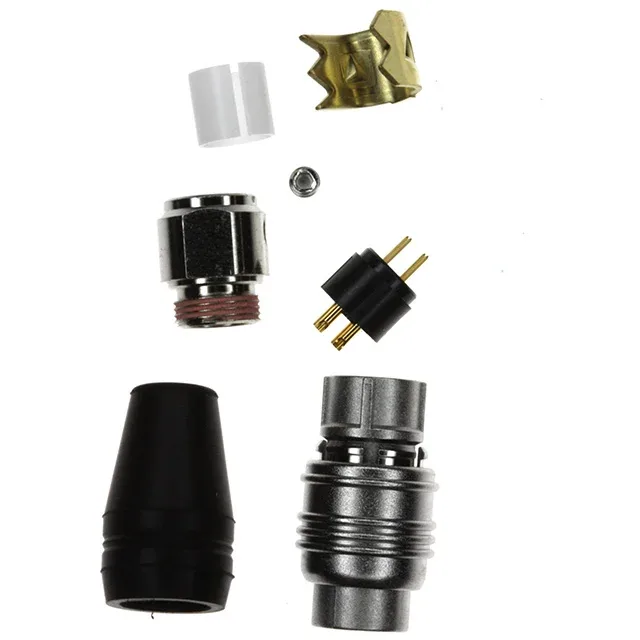

Hirose Electric Co Ltd HR25A-7P-4P
MPNHR25A-7P-4P
Active
CONN PLUG MALE 4P GOLD SLDR CUP
$25.97Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHR25A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HR25A |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC, 42VDC |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Zinc Alloy |
| Insert material | Polyphenylene Sulfide (PPS) |
| Contact material | Phosphor Bronze |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Backshell material, plating | Brass, Nickel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Clamp, Strain Relief |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | 7 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
