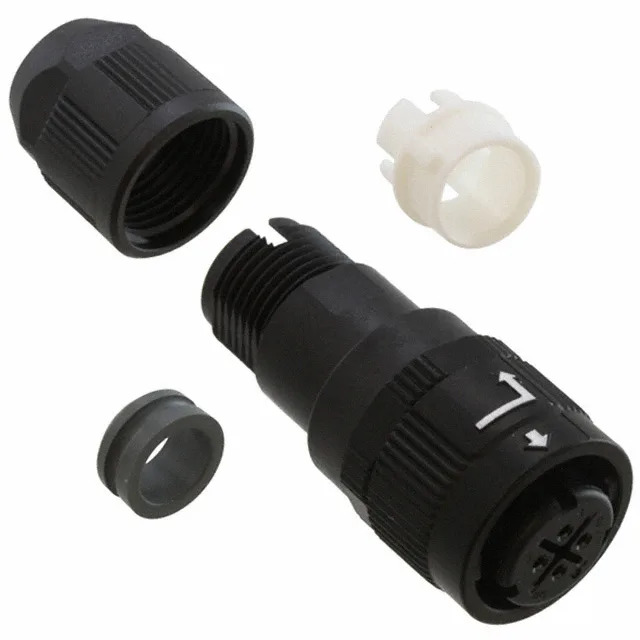

Hirose Electric Co Ltd HR34B-12WPE-4S
MPNHR34B-12WPE-4S
Active
CONN PLUG FMALE 4P SOLDER CUP
$20.38Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHR34B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HR34B |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Bayonet Lock |
| Current rating | 5A |
| IP rating | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof |
| Cable opening | 0.256\" ~ 0.287\" (6.50mm ~ 7.30mm) |
| Operating temperature | -25°C ~ 125°C |
| Color | Black |
| Shell material | Zinc Alloy |
| Insert material | Polyphenylene Sulfide (PPS) |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Backshell, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Telecommunications |
| Shell finish | Chrome |
| Positions | 4 (Power) |
| Shell size - insert | 12 |
| Contact finish - mating | Silver |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
