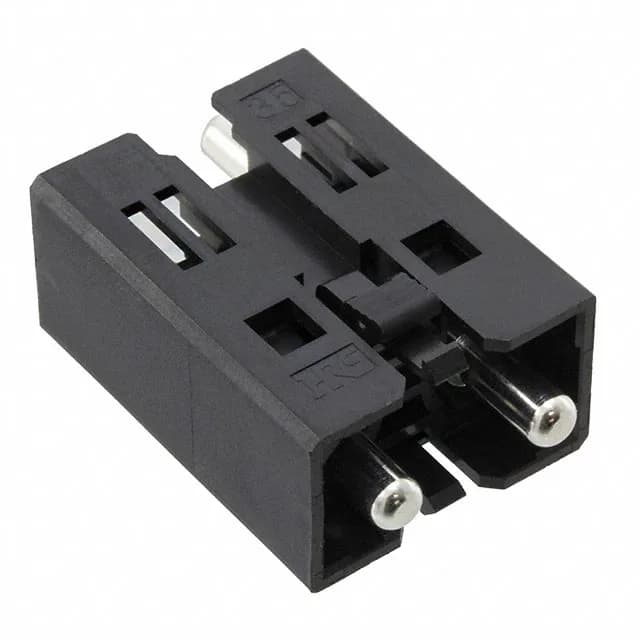

Hirose Electric Co Ltd IT-P-2P-35H
MPNIT-P-2P-35H
Active
$9.6012Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IT-P |
| Type | Male Pin |
| Mounting | Stacking |
| Connector type | Interposer |
| Fastening type | Locking Ramp |
| Voltage rating | 300V |
| Current rating | 60A per Contact |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.787\" (19.99mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 35mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.472\" (12.00mm) |
| Positions | 2 |
| Contact finish - mating | Silver |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
