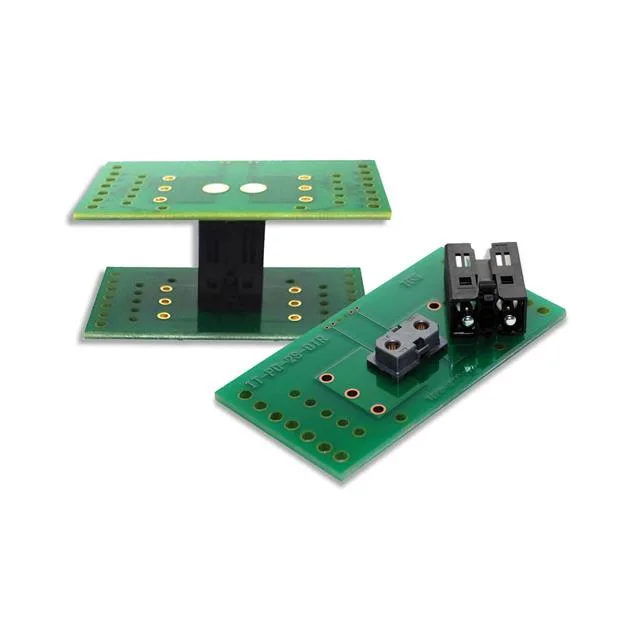

Hirose Electric Co Ltd IT-PA-2P-14H(11)
MPNIT-PA-2P-14H(11)
Active
$13.4000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IT-P |
| Type | Male Pin |
| Mounting | Stacking |
| Connector type | Interposer |
| Voltage rating | 300VAC/DC |
| Current rating | 60A per Contact |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.425\" (10.80mm) |
| Positions | 2 |
| Contact finish - post | Gold |
| Overall contact length | 0.709\" (18.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
