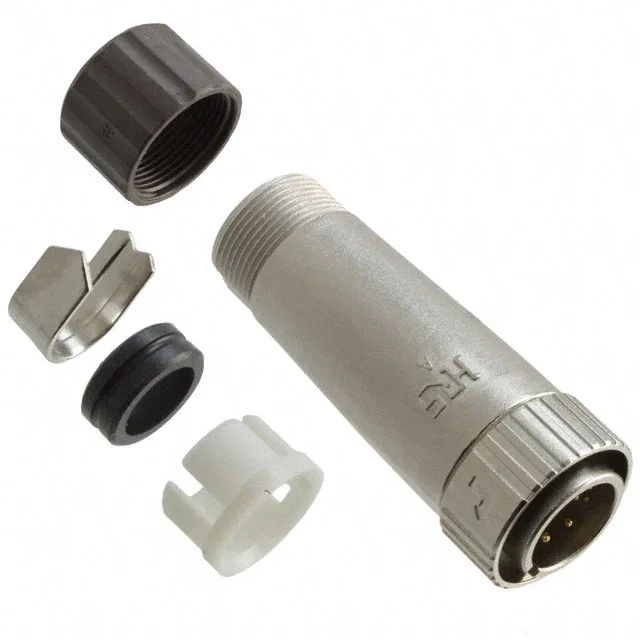

Hirose Electric Co Ltd LF13WBP-20P
MPNLF13WBP-20P
Active
CONN PLUG MALE 20P GOLD SLDR CUP
$25.41Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LF |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 30VAC, 42VDC |
| Current rating | 2A |
| IP rating | IP67/IP68 - Dust Tight, Waterproof |
| Operating temperature | -25°C ~ 85°C |
| Color | Brown, Silver |
| Shell material | Zinc Alloy |
| Insert material | Polyphenylene Sulfide (PPS) |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Zinc Alloy, Nickel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial, Telecommunications |
| Shell finish | Nickel |
| Positions | 20 |
| Shell size - insert | 13 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
