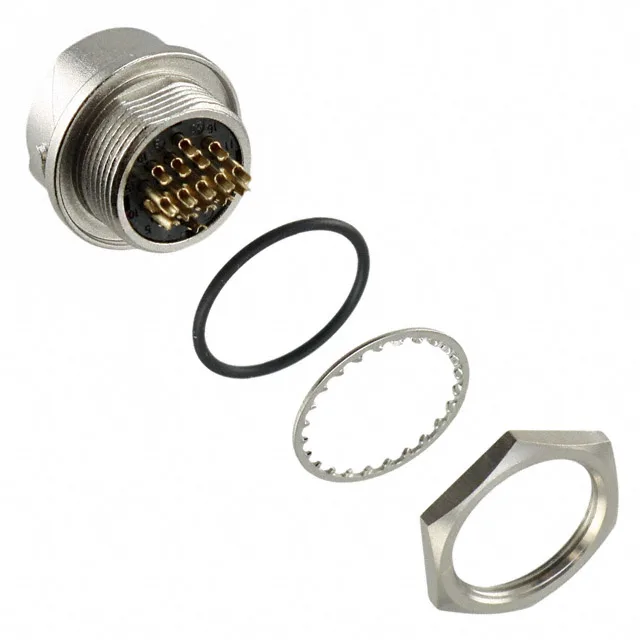

Hirose Electric Co Ltd LF13WBR-20P
MPNLF13WBR-20P
Active
CONN RCPT MALE 20P GOLD SLDR CUP
$16.08Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LF |
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 30VAC, 42VDC |
| Current rating | 2A |
| IP rating | IP67/IP68 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -25°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Polyphenylene Sulfide (PPS) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial, Telecommunications |
| Shell finish | Nickel |
| Positions | 20 |
| Shell size - insert | 13 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
