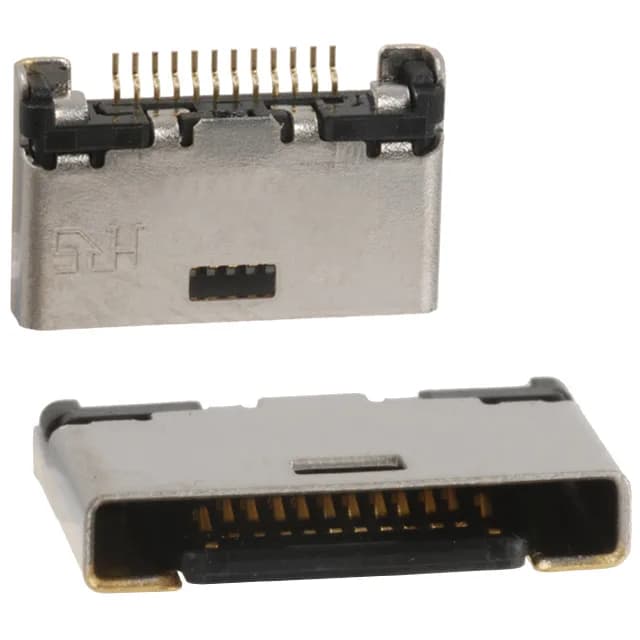

Hirose Electric Co Ltd LX60-12S
MPNLX60-12S
Active
CONN RCPT 12P 0.02 GOLD SMD R/A
$2.5600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesLX
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LX |
| Type | Center Strip Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 50VAC |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 70°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Rows | 1 |
| Pitch | 0.020\" (0.50mm) |
| Positions | 12 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 12.0µin (0.30µm) |
