Hirose Electric Co Ltd MMCX-LP-066(40) — RF / Coaxial Connectors
Hirose Electric Co Ltd

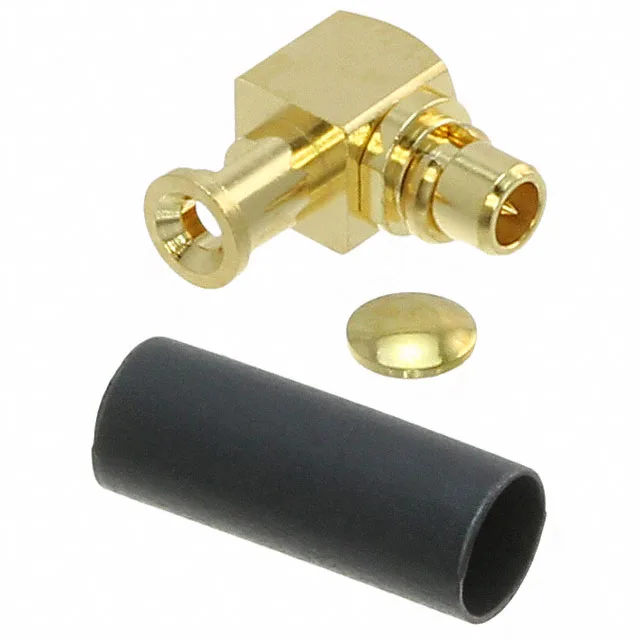

Hirose MMCX-LP-066(40) MMCX Plug, 50 Ohm, Right Angle, 6 GHz

MPNMMCX-LP-066(40)
Active

Hirose MMCX series MMCX-LP-066(40) plug, male pin, 50 Ohm, right-angle, free-hanging, solder termination, crimp shield, gold body, 6 GHz max, 500 mating cycles, includes heat shrink, bulk.

$10.3800Ref. price · indicative, final on quote
MMCX-LP-066(40) datasheet
StockIn Stock (15)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MMCX-LP-066(40) Technical Specifications
ParameterValue
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeSnap-On
Frequency - max6 GHz
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes2 pcs - 1 Connector, 1 Heat Shrink
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

What this MMCX plug is and what it carries

The Hirose MMCX-LP-066(40) is a 50 Ohm MMCX plug with a male pin contact, designed for snap-on mating to any standard MMCX jack. Rated to 6 GHz, it covers the common ISM bands, GPS /L2, and most cellular sub-6 GHz links — the PTFE dielectric keeps the impedance stable across that range.

Termination and assembly — what comes in the kit

This is a solder-contact, crimp-shield termination. The centre pin gets soldered to the coax centre conductor; the shield braid is captured by the crimp ferrule. The package includes two pieces: the connector body and a heat shrink tube. That heat shrink goes over the crimp area to strain-relieve the cable-to-connector junction and seal it against moisture ingress — a detail that saves you sourcing a separate tube for a field-assembled cable.

Mating cycle life and field reliability

Rated for 500 mating cycles, which is typical for an MMCX snap-on interface. The gold-on-gold contact interface (gold centre contact plating, gold body finish) prevents fretting corrosion over those cycles.

Frequently asked questions

Where can I buy MMCX-LP-066(40) and how do I get a price?

The MMCX-LP-066(40) is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — both are confirmed at quote time. No stock-holding claim is made here; the supply posture is quoted per request.

What is the impedance of MMCX-LP-066(40)?

The MMCX-LP-066(40) is a 50 Ohm connector, which is the standard impedance for MMCX interfaces and matches most RF system designs.

Is MMCX-LP-066(40) a right angle connector?

Yes, the MMCX-LP-066(40) is a right-angle plug, free-hanging (in-line) style. The right-angle body routes the cable perpendicular to the mating axis.
