MMCX-LP-316/U — MMCX Plug for RG-316 Cable

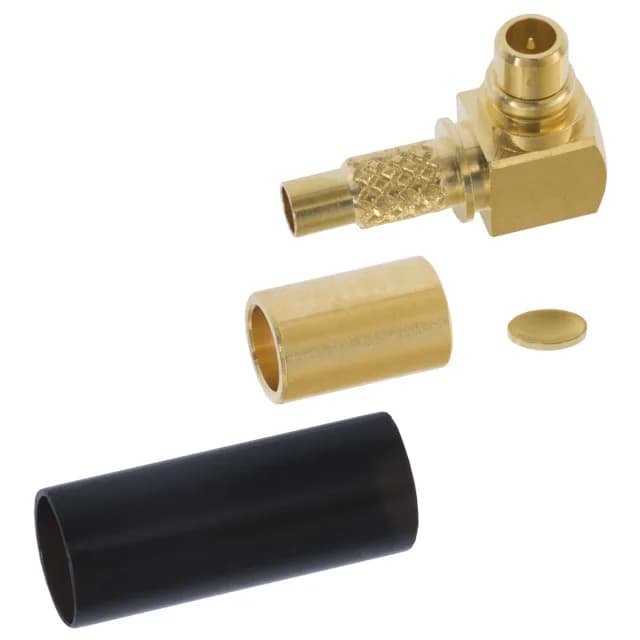

It delivers a 50 Ohm impedance path rated to 6 GHz, with a snap-on fastening type that gives positive retention without threads. The right-angle, free-hanging body keeps the cable routed close to the board edge or panel face. Gold plating on the brass body and phosphor bronze centre contact supports 500 mating cycles — typical for test-port or module-interconnect duty where the connector sees regular mate/unmate cycles. The kit includes a heat shrink sleeve for strain relief and environmental sealing at the cable-to-connector joint.
The included heat shrink covers the crimp barrel to protect the braid termination from moisture and mechanical abrasion.
No official successor is on record. If you are evaluating a replacement, the 50 Ohm MMCX interface is standardised, so any MMCX plug for RG-316 with the same termination style is a functional candidate, but no direct cross-reference is documented.
