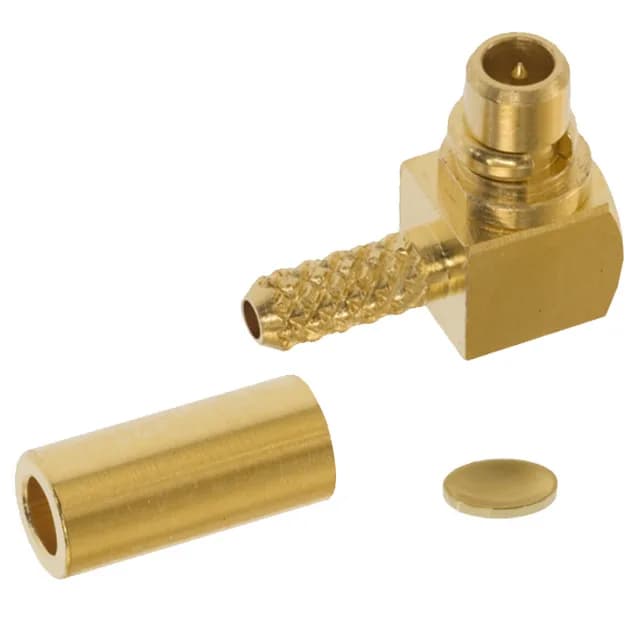

The MMCX-LP-FHSB is a 50 Ohm MMCX plug with a male pin contact, designed for snap-on mating to standard MMCX jacks. It handles signals up to 6 GHz, which covers most wireless LAN, GPS, and cellular bands through 4G LTE. The right-angle, free-hanging body lets you route the cable parallel to the panel or board edge in tight enclosures. Gold plating on the brass body and phosphor bronze centre contact gives corrosion resistance for repeated field connections.
No direct replacement order code is listed on the record.
The 6 GHz upper frequency is the practical limit before return loss degrades; for sub-3 GHz applications (ISM, GPS, cellular) it has plenty of headroom. 500 mating cycles is typical for a snap-on MMCX interface — the gold-on-phosphor-bronze centre contact holds up through repeated connect-disconnect cycles in test fixtures or portable gear.
This is the standard MMCX termination sequence — solder the pin, trim the dielectric flush, then crimp the ferrule. No specific cable group is listed, but the crimp shield termination works with common 50 Ohm flexible coax in the 2-3 mm diameter range.
