Hirose Electric Co Ltd MMCX-LR-SMT — RF / Coaxial Connectors

Hirose MMCX-LR-SMT MMCX Receptacle, 50 Ohm, 6 GHz, Obsolete

MPNMMCX-LR-SMT
Obsolete

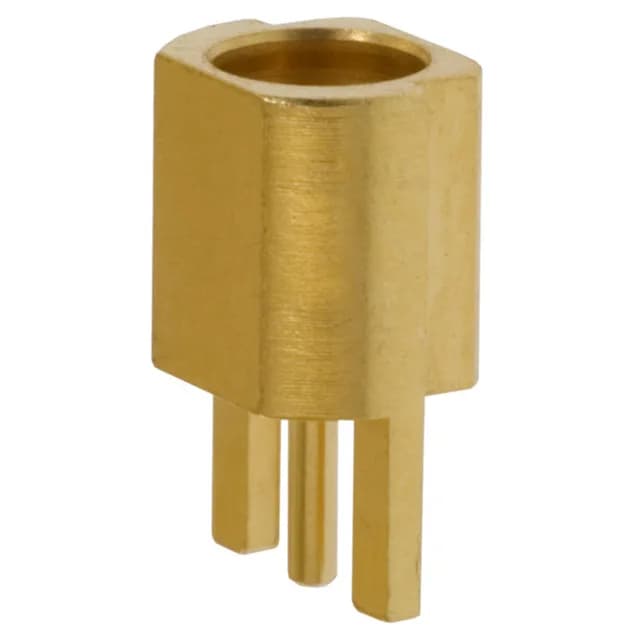

Hirose MMCX series MMCX-LR-SMT receptacle, female socket, 1 port, 50 Ohms impedance, 6 GHz max frequency, snap-on fastening, board edge cutout surface mount, gold body finish, bulk package.

$4.1200Ref. price · indicative, final on quote
Hirose Electric Co Ltd MMCX-LR-SMT datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MMCX-LR-SMT specifications
ParameterValue
MountingBoard Edge, Cutout; Surface Mount
Connector typeReceptacle, Female Socket
Fastening typeSnap-On
Frequency - max6 GHz
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

MMCX-LR-SMT — Hirose MMCX Receptacle for Board-Edge RF

The Hirose MMCX-LR-SMT is a 50 Ohm MMCX receptacle, female socket, designed for board-edge cutout mounting with surface-mount terminations. It belongs to the MMCX series of subminiature push-on RF connectors, specified for snap-on fastening and rated to 6 GHz. The gold-plated beryllium copper centre contact and gold body finish are standard for maintaining signal integrity through repeated matings — the 500-cycle rating covers field-service reconnects without contact degradation.

Mounting and Footprint Notes

This receptacle mounts to a board-edge cutout with surface-mount solder pads — not a standard through-hole or SMT-only footprint. The board-edge cutout means the connector body sits partly off the board edge, which affects the ground-plane keep-out zone. Layout engineers should verify the cutout dimensions against the Hirose product drawing before committing the PCB.

Compatibility with Standard MMCX Cables

The snap-on fastening and 50 Ohm impedance are standard MMCX interface dimensions, so this receptacle mates with any standard MMCX plug that follows the interface specification.

Frequently asked questions

Where can I buy the MMCX-LR-SMT?

The MMCX-LR-SMT is obsolete and sourced through the surplus and broker channel. It is quoted to order against an RFQ — availability and current pricing are confirmed at quote time through independent distribution.

What is the impedance of the MMCX-LR-SMT?

The MMCX-LR-SMT is a 50 Ohm impedance connector, rated to 6 GHz maximum frequency. The 50 Ohm controlled-impedance design matches standard RF transmission lines and MMCX cable assemblies.
