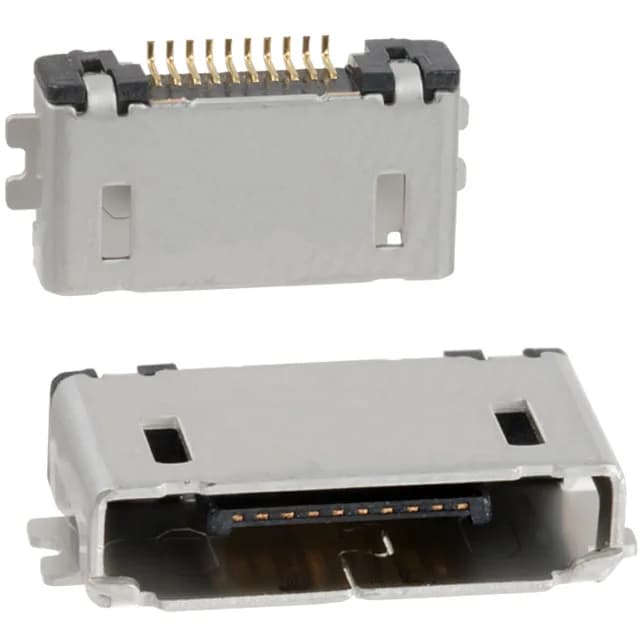

Hirose Electric Co Ltd MQ212-10PT
MPNMQ212-10PT
Active
CONN RCPT 10P 0.02 GOLD SMD R/A
$2.7300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMQ212
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MQ212 |
| Type | Center Strip Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50VAC |
| Current rating | 0.3A |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.112\" (2.85mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Termination | Solder |
| Rows | 1 |
| Pitch | 0.020\" (0.50mm) |
| Positions | 10 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
