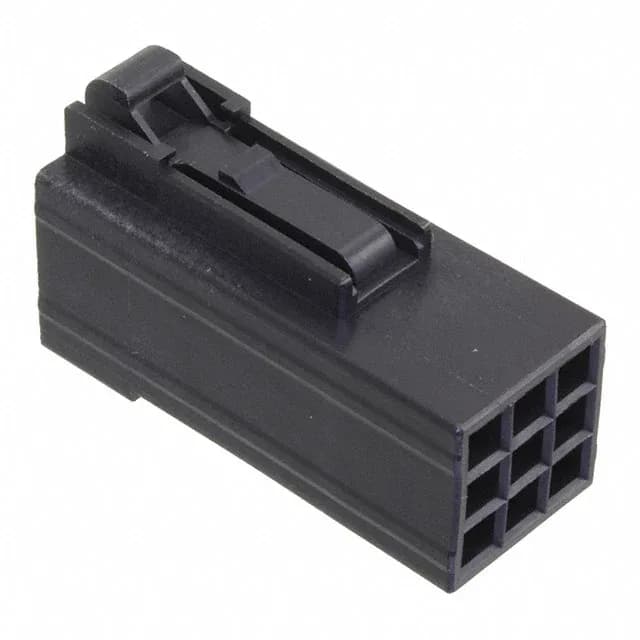

JAE PS2 series plug housing, PS2-9PC, 9 positions, 3 rows, 0.181" (4.60mm) pitch, free-hanging, crimp termination, latch lock, black synthetic resin, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | PS2 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Synthetic Resin |
| Note | Contacts Not Included |
| Pitch | 0.181\" (4.60mm) |
| Package | Bulk |
| Row spacing | 0.244\" (6.20mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 9 |
The 0.181" (4.60mm) pitch and 0.244" (6.20mm) row spacing give it a board footprint that suits industrial control cabinets, automotive interior harnesses, and power distribution within equipment enclosures.
It is RoHS Compliant. No official cross-reference or second-source exists beyond the JAE PS2 series itself.
The mating half is the JAE PS2-9SC receptacle housing. It has the same 4.60mm pitch, 3 rows, and latch-lock retention. The PS2-9SC accepts female socket crimp terminals.
Yes, the PS2-9PC is RoHS Compliant per the listing.
