Hirose Electric Co Ltd RM12BRB-6S(81)
MPNRM12BRB-6S(81)
Active

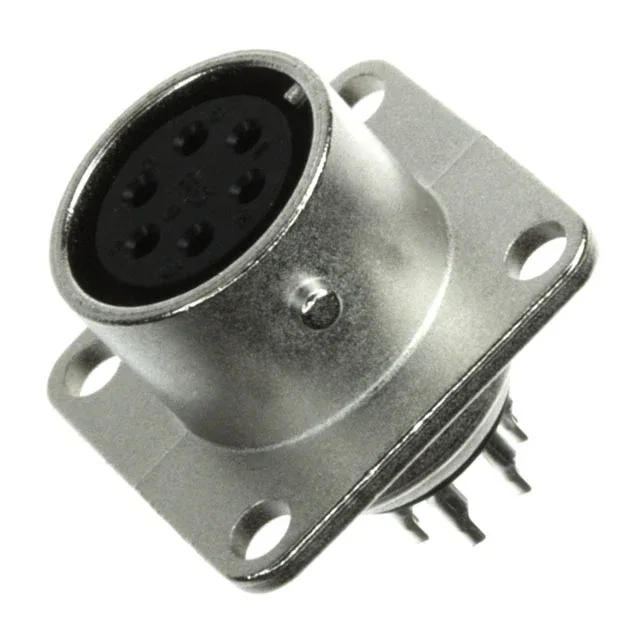

CONN RCPT FMALE 6P SOLDER CUP
$20.74Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RM |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Bayonet Lock |
| Voltage rating | 350VAC, 490VDC |
| Current rating | 5A |
| Mounting feature | Flange |
| Operating temperature | -25°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Polyphenylene Sulfide (PPS) |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Orientation | Keyed |
| Termination | Solder Cup |
| Shell finish | Nickel |
| Positions | 6 |
| Shell size - insert | 12 |
| Contact finish - mating | Silver |
| Contact finish thickness - mating | 196.9µin (5.00µm) |
