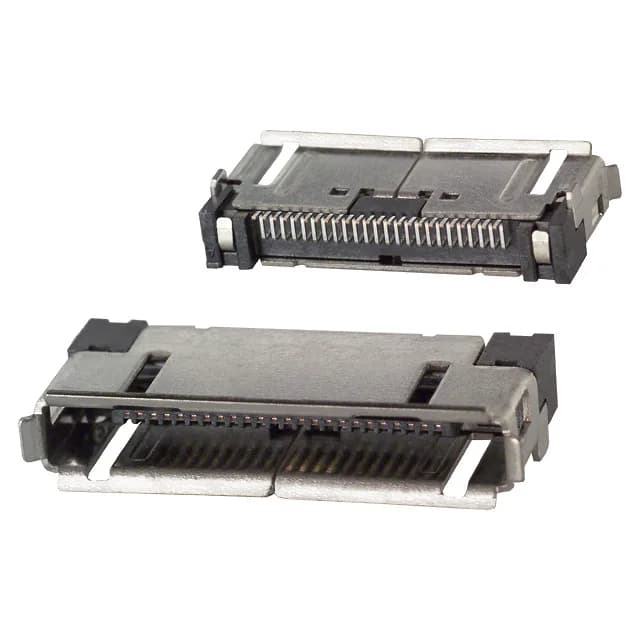

Hirose Electric Co Ltd ST60-24P
MPNST60-24P
Obsolete
$2.2300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ST |
| Type | Non-Gendered |
| Mounting | Board Edge, Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 100VAC |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 80°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Board Guide, Shielded |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Rows | 1 |
| Pitch | 0.020\" (0.50mm) |
| Positions | 24 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
