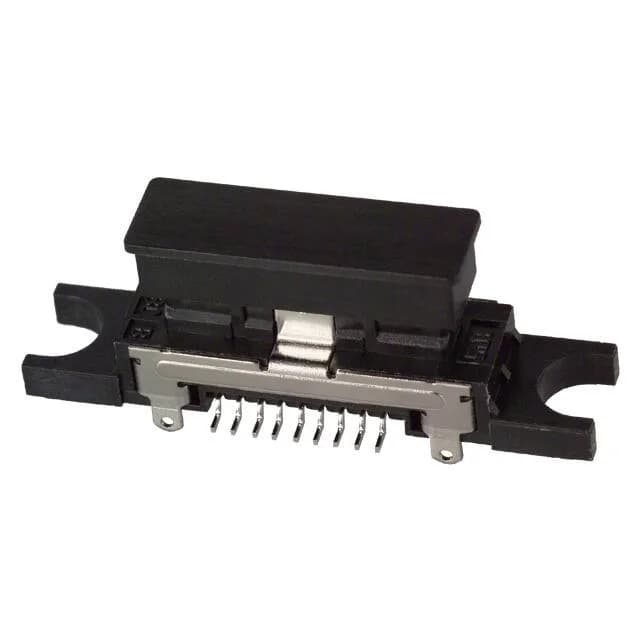

Hirose Electric Co Ltd ST80X-18S
MPNST80X-18S
Obsolete
$4.0400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ST |
| Type | Non-Gendered |
| Mounting | Surface Mount |
| Connector type | Plug, Cradle |
| Fastening type | Latch Holder |
| Voltage rating | 100V |
| Current rating | 0.5A |
| Operating temperature | -30°C~80°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.378\" (9.60mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Mounting Flange, Shielded |
| Termination | Solder |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 18 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
