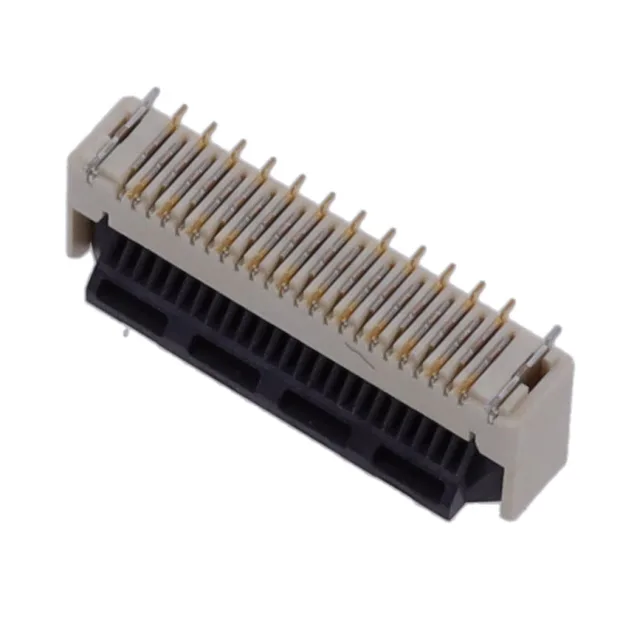

Hirose Electric Co Ltd TF38-24S-0.5SV(830)
MPNTF38-24S-0.5SV(830)
Active
CONN FFC VERT 24POS 0.5MM SMD
$1.6100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTF38
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TF38 |
| Mounting | Surface Mount |
| Cable end type | Tabbed |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.205\" (5.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 24 |
| Contact finish thickness | 1.25µin (0.03µm) |
