Shielded RJ45 Jack for Board-Edge Ethernet
The gold-plated phosphor bronze contacts resist corrosion across repeated mating cycles, and the shielded shell contains radiated emissions from the data lines.

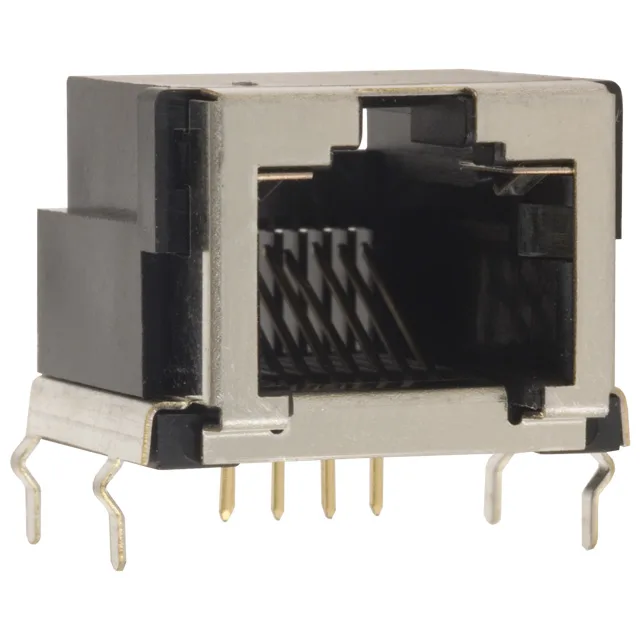

Hirose TM11R-5C-88(50) Shielded RJ45 Jack, 8P8C R/A
MPNTM11R-5C-88(50)
Active
Hirose TM11R series, shielded modular jack (RJ45), 8P8C, right-angle, through-hole, solder termination, gold-plated phosphor bronze contacts, board lock and panel stops.
$5.1500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTM11R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TM11R |
| Mounting | Through Hole |
| Connector type | Jack |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Package | Tray |
| Features | Board Lock, Panel Stops |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
Product details
Frequently asked questions
Where can I buy TM11R-5C-88(50) in stock?
Sourcing buyers need immediate availability for production or repair; out-of-stock delays projects.
What is the TM11R-5C-88(50) datasheet?
Design engineers verify electrical and mechanical specs to ensure fit in the PCB layout.
Is TM11R-5C-88(50) obsolete or active?
Buyers and brokers need lifecycle status to avoid end-of-life parts or plan for alternatives.
What is the TM11R-5C-88(50) equivalent part?
Cross-referencing helps find substitutes if the part is hard to source or for second-source strategy.
Does TM11R-5C-88(50) have an LED?
Designers need to know for visual indication; spec explicitly says 'Does Not Contain LED'.
What is the lead time for TM11R-5C-88(50)?
Sourcing buyers must align procurement timelines with manufacturing schedules and avoid shortages.
