TM-W Jack with 4p4c Interface and Wire Leads

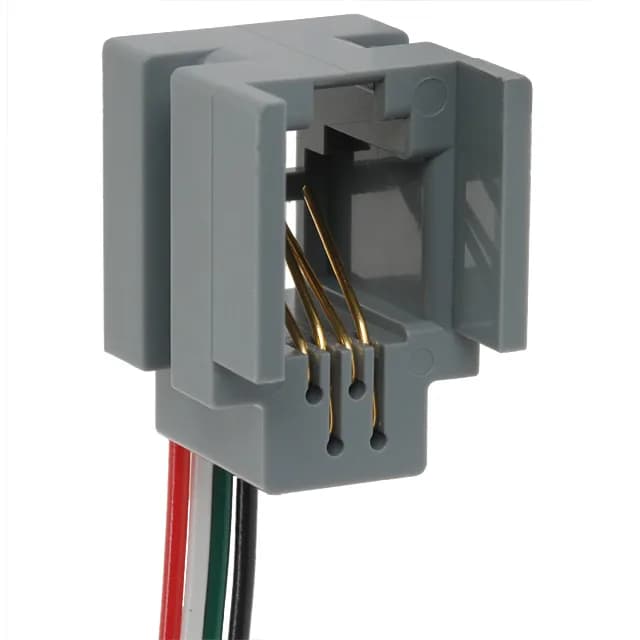

The Hirose TM1R-616M44-35S-150AM is a TM-W series jack with a 4p4c (RJ9, RJ10, RJ22) contact arrangement. This is a single-port, single-row, unshielded jack terminated with wire leads for panel-mount installations. The gold-plated phosphor bronze contacts resist corrosion across moderate mating cycles, while the user-selectable orientation and tab direction give flexibility in routing the cable exit inside an enclosure.
Last Buy — Secure Stock Now
This part is on Last Buy status. That means the manufacturer has ceased regular production and the remaining channel inventory is finite. Any stock we source is drawn from the remaining supply chain or surplus channels. If this connector matches your BOM line, we recommend confirming your quantity and lead time requirements against an RFQ — once the last units are consumed, no further production is planned.
Termination is via pre-attached wire leads — no crimping or soldering required at the connector body. The panel mount style means the jack secures through a chassis cutout, with the wire leads routed to the mating circuit. The user-selectable orientation and tab direction allow the connector to be positioned so the cable exits in the direction that best fits the enclosure layout.
Contact Design and Material Choice
Phosphor bronze is a spring-grade alloy that holds up to repeated deflection — important for a jack that sees plug insertions. For a 4p4c signal application, this contact set handles the duty without the noise issues you might see with tin on low-level circuits.
