Hirose Electric Co Ltd TM1RV-623K66-35S-150M — Modular / RJ Connectors

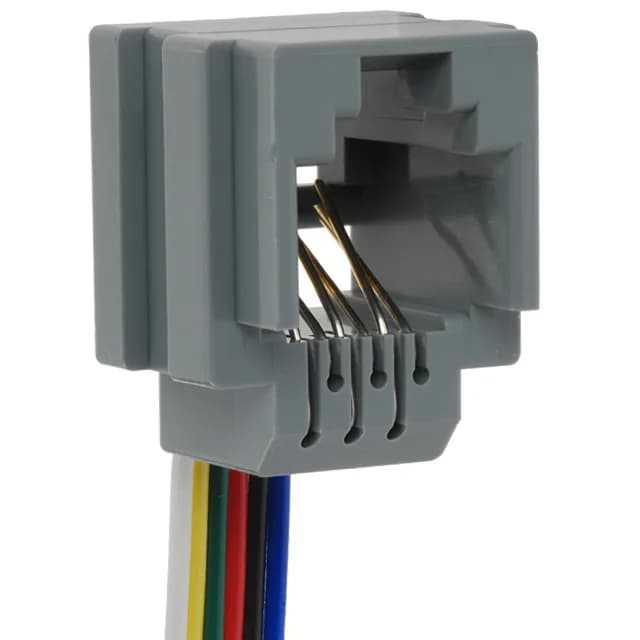

Hirose TM1RV-623K66-35S-150M TM-W Jack, 6p6c, Last Buy

MPNTM1RV-623K66-35S-150M
Last Buy

Hirose TM-W series jack, 6p6c (RJ11, RJ12, RJ14, RJ25), 1 row, 1 port, free-hanging (in-line), wire leads, unshielded, gold 50.0µin (1.27µm) contacts, panel stops, user-selectable orientation and tab direction, bulk.

$8.6400Ref. price · indicative, final on quote
Hirose Electric Co Ltd TM1RV-623K66-35S-150M datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

TM1RV-623K66-35S-150M specifications
ParameterValue
SeriesTM-W
MountingFree Hanging (In-Line)
Connector typeJack
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialAcrylonitrile Butadiene Styrene (ABS)
PackageBulk
FeaturesPanel Stops
ShieldingUnshielded
OrientationUser Selectable
TerminationWire Leads
Tab directionUser Selectable
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)6p6c (RJ11, RJ12, RJ14, RJ25)

Product details

The Hirose TM1RV-623K66-35S-150M is a 6p6c jack from the TM-W series, wired for RJ11, RJ12, RJ14, or RJ25 pinouts. It terminates with pre-attached wire leads for free-hanging in-line installation — no PCB footprint or crimp tool needed. The housing is ABS with panel stops that locate the jack flush against a panel cutout, and both the orientation and tab direction are user-selectable, so the cable exit can be rotated to suit the routing without ordering a different part number.

Last Buy — Sourcing for the Final Run

This part is on Last Buy status — the manufacturer has ended regular production, and remaining stock is being drawn down. Confirm your BOM quantity and lead-time window at quote time; once the channel dries, this part will be gone.

Contact Plating and Field Duty

For a field-service jack that gets plugged and unplugged during equipment maintenance, that plating grade buys years of reliable contact resistance. The unshielded shell means this jack is for signal paths where EMI containment is handled elsewhere in the enclosure.

Frequently asked questions

Is TM1RV-623K66-35S-150M obsolete or last time buy?

Yes, TM1RV-623K66-35S-150M is on Last Buy status. Regular production has ended; remaining stock is limited and sourced through the surplus channel. Request a quote for current availability and pricing — no stock-holding commitment is made here.

What is a direct replacement for TM1RV-623K66-35S-150M?

A functionally equivalent 6p6c jack with wire leads and user-selectable orientation would need to be evaluated against the original Hirose TM-W series footprint and panel cutout.
