The TM2RE-1208(50) is a 2-port jack — two RJ11/RJ14 jacks in one body — with a single row of contacts per port. The vertical through-hole solder termination suits a standard PCB layout where the jack sits upright, and the board lock anchors it during wave solder and subsequent mating cycles. Operating temperature is rated from -25°C to 80°C, which covers indoor telecom equipment and office peripherals but not outdoor or high-heat environments.

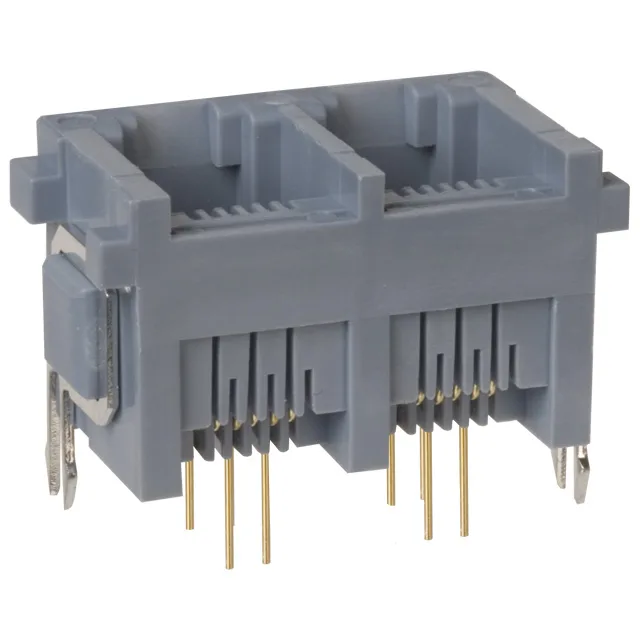

Hirose TM2RE-1208(50) TM-DSA Jack, 6p4c RJ11, Obsolete
MPNTM2RE-1208(50)
Obsolete
Hirose TM-DSA series, TM2RE-1208(50) jack, 6p4c (RJ11, RJ14), 1 row, 2 ports, through-hole solder, vertical orientation, gold-plated contacts, board lock, unshielded.
$4.8000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TM-DSA |
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -25°C ~ 80°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Unshielded |
| Orientation | Vertical |
| Termination | Solder |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 2 |
| Number of positions (Contacts) | 6p4c (RJ11, RJ14) |
Product details
Frequently asked questions
What is the replacement for TM2RE-1208(50)?
No official replacement part number is recorded in the lifecycle data for the TM2RE-1208(50). A functionally equivalent RJ11/RJ14 jack would need to be validated for footprint and mating compatibility against the original design.
