Hirose Electric Co Ltd TM2REA-1818(50) — Modular Jacks (RJ)
Hirose Electric Co Ltd

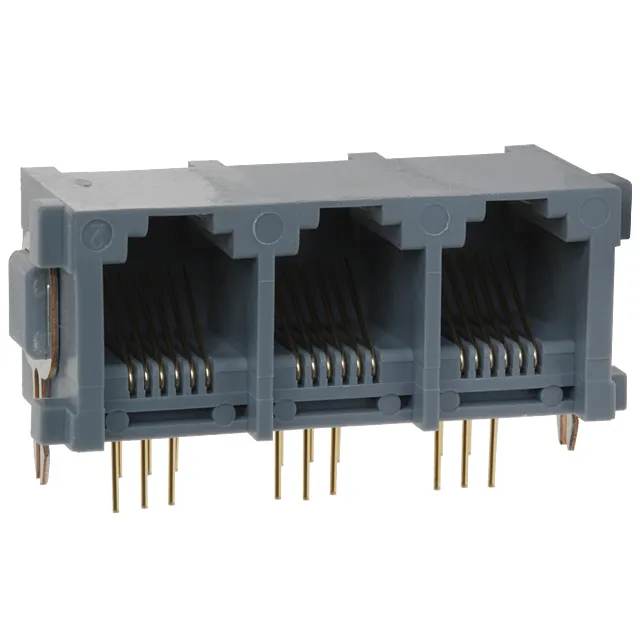

Hirose TM2REA-1818(50) TM-DS RJ11 Jack, 6P6C R/A Unshielded

MPNTM2REA-1818(50)
Active

Hirose TM-DS Series, Modular Jack, TM2REA-1818(50), 6P6C (RJ11, RJ12, RJ14, RJ25), Right Angle, Through Hole, Solder, Gold, Unshielded, 3 Ports, Board Lock, Panel Stops.

$9.1800Ref. price · indicative, final on quote
TM2REA-1818(50) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

TM2REA-1818(50) Technical Specifications
ParameterValue
SeriesTM-DS
MountingThrough Hole
Connector typeJack
Operating temperature-25°C ~ 80°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolybutylene Terephthalate (PBT)
PackageTray
FeaturesBoard Lock, Panel Stops
ShieldingUnshielded
Orientation90° Angle (Right)
TerminationSolder
Tab directionUp
Contact finishGold
Rows1
Number of ports3
Number of positions (Contacts)6p6c (RJ11, RJ12, RJ14, RJ25)

Product details

The Hirose TM2REA-1818(50) is a 6-position, 6-conductor (6p6c) modular jack from the TM-DS series, wired for RJ11, RJ12, RJ14, and RJ25 applications. It's a right-angle, through-hole solder-mount jack with gold-plated phosphor bronze contacts and an unshielded PBT housing. The three-port layout and board lock with panel stops make it a candidate for telecom or networking equipment where multiple line connections sit side-by-side on a single PCB, and the jack needs to resist plug insertion forces without lifting pads.

Board Fit and Mechanical Anchoring

The through-hole solder tails take the mechanical load of repeated plugging cycles better than surface-mount would. Panel stops set the insertion depth against the panel face, so the jack doesn't push through the cutout when you seat the mating plug.

Contact Plating and Signal Duty

Gold-plated phosphor bronze contacts, 6p6c arrangement.

Operating range -25°C to 80°C, PBT housing.

Frequently asked questions

What is the pinout for TM2REA-1818(50)?

This is a 6-position, 6-conductor (6p6c) jack wired for RJ11, RJ12, RJ14, and RJ25 standards. The pinout follows the standard RJ wiring scheme for those interfaces — center pair for RJ11, two pairs for RJ14/RJ12, three pairs for RJ25. Confirm your specific wiring assignment against the equipment schematic before terminating.

Is TM2REA-1818(50) RoHS compliant?

Yes, it carries ROHS3 compliance, covering the current EU restricted substance list.
