What This U.FL Connector Does in the RF Path

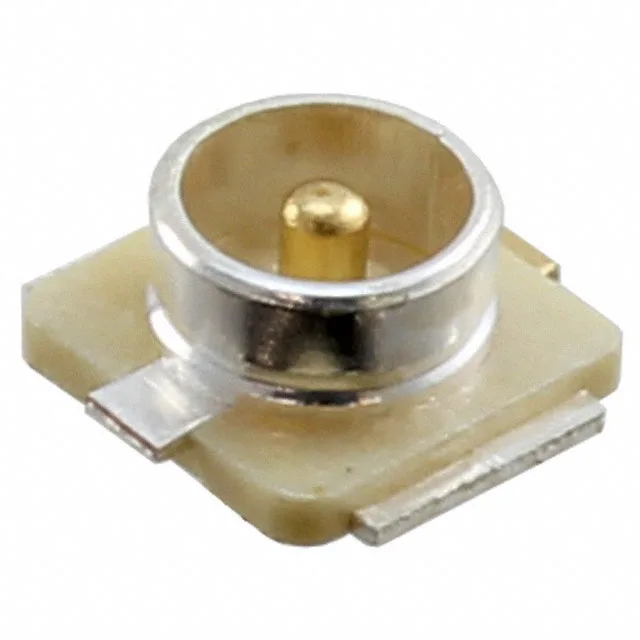

The snap-on fastening mates with the matching U.FL plug on a coaxial cable assembly, giving a low-profile connection that stays put under light vibration. Gold plating on the brass center contact keeps the signal path clean across the 30-cycle mating life.
The 6 GHz max frequency means this connector handles 5 GHz Wi-Fi, GPS L-band, and ISM-band signals with headroom, but it is not rated for millimeter-wave applications above 6 GHz. The beige LCP dielectric body holds the impedance stable across the -40°C to 90°C operating range, so the connector performs consistently whether it sits in a cold outdoor radio or a warm indoor access point.
SMT Assembly and Board Layout Notes
This is a surface-mount part, so it flows through the same reflow oven as the rest of the board — no hand-soldering required for the shield or center contact. The shield termination is soldered to the PCB ground plane, which ties the connector body to the board ground and keeps the RF return path short. The silver-plated phosphor bronze body provides the solderable shield surface.
Mating Cycles and Field Service Reality
The 30 mating cycles is the spec limit — that is typical for a snap-on U.FL connector. This is not a connector you design for repeated disconnect/reconnect in a test fixture; it is meant for one or two matings during assembly and maybe a field swap if a cable fails. Treat it as a set-and-forget interconnect in production.
