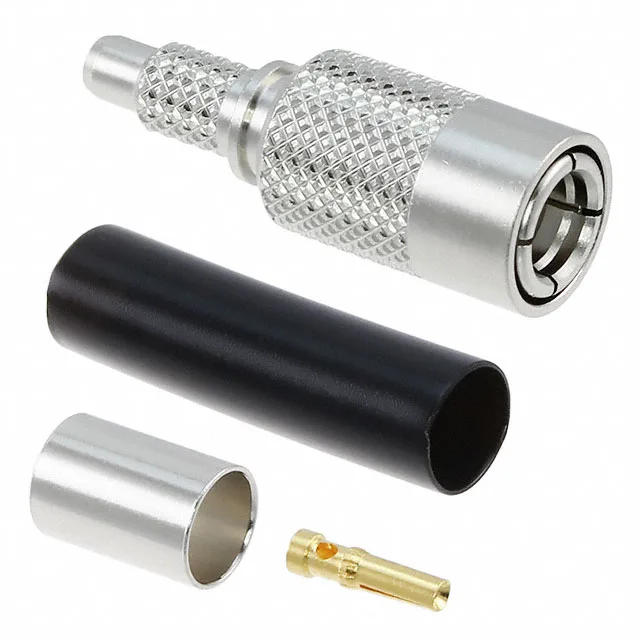

Hirose Electric Co Ltd UM-QP-1.5VCR3A(40)
MPNUM-QP-1.5VCR3A(40)
Active
$8.4400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | UM |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Socket |
| Fastening type | Snap-On |
| Frequency - max | 3 GHz |
| Cable group | 1.5D-2V, 1.5D-HQEV, 1.5D-QEV |
| Operating temperature | -30°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 2 pcs - 1 Connector, 1 Heat Shrink |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
