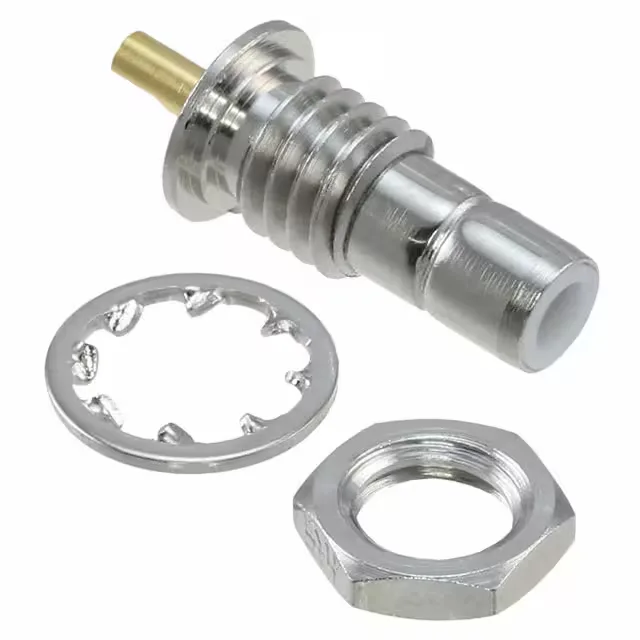

Hirose Electric Co Ltd UM-QR(41)
MPNUM-QR(41)
Active
$9.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | UM |
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pin |
| Fastening type | Snap-On |
| Frequency - max | 1 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 1000 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder Cup |
| Center contact plating | Gold |
