Hirose Electric Co Ltd UX60-MB-5ST

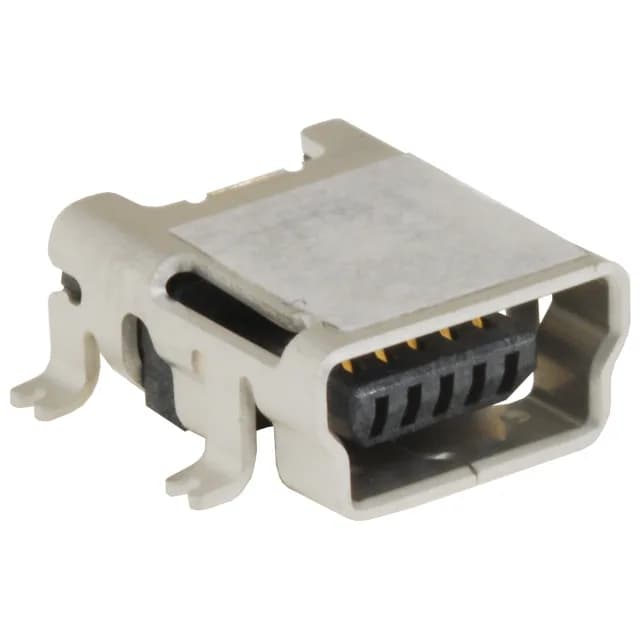

Hirose UX60-MB-5ST USB 2.0 Mini-B Receptacle, 5 Contacts, 1A

MPN UX60-MB-5ST
Obsolete

Hirose UX series USB 2.0 mini-B receptacle, 5 contacts, 1A, 5VAC, right-angle SMT, shielded, gold-plated contacts, 5000 mating cycles, UL94 V-0.

$1.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

UX60-MB-5ST key specifications
ParameterValue
SeriesUX
MountingSurface Mount, Right Angle
Connector typeUSB - mini B
Voltage - rated5VAC
Current rating1A
Positions5
Mounting featureHorizontal
Operating temperature-30°C ~ 75°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

UX60-MB-5ST additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

It carries 5 contacts in a single port, rated 1A at 5VAC, and is specified for USB 2.0 signal rates.

The gold-plated contacts support that cycle life without corrosion or wear-through on the mating surface. The shielded shell, made from copper alloy, provides the ground path and EMI containment that USB 2.0 signal integrity depends on, especially in industrial or lab environments where noise from nearby power lines or motors can corrupt data.

This is a surface-mount, right-angle receptacle with a horizontal mounting feature. The SMT termination means no through-holes — the connector sits entirely on the board surface, saving space on the opposite side for other components.
