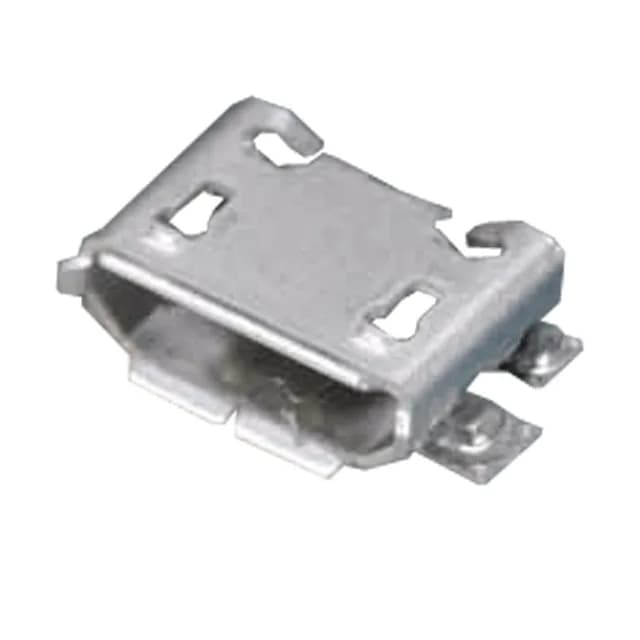

Hirose ZX62-B-5PA USB micro-B Receptacle, 5 Contacts

MPNZX62-B-5PA
Obsolete

Hirose ZX Series USB - micro B receptacle, 5 contacts, 1A per contact, 30VAC, shielded, surface mount right angle, solder termination, gold contacts, UL94 V-0.

$0.8400Ref. price · indicative, final on quote
Hirose Electric Co Ltd ZX62-B-5PA datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026

Specifications

ZX62-B-5PA key specifications
ParameterValue
SeriesZX
MountingSurface Mount, Right Angle
Connector typeUSB - micro B
Voltage - rated30VAC
Current rating1A per Contact
Positions5
Mounting featureBottom Mount, Horizontal
Operating temperature-30°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

ZX62-B-5PA additional specifications
ParameterValue
PackageTape & Reel (TR)
FeaturesPick and Place, Solder Retention
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB micro-B Receptacle, 5 Contacts — Obsolete, Sourced to Order

The Hirose ZX62-B-5PA is a USB micro-B receptacle from the ZX series, designed for applications requiring a shielded, surface-mount USB 2.0 connection. The stainless steel shell provides EMI shielding and mechanical durability.

Key Specs for Fit and Function

The 5-contact pinout follows the standard USB micro-B configuration — power (VBUS), D-, D+, ID, and ground. The 10000 mating cycles are well above the typical USB micro-B connector (often rated 5000-10000), indicating a robust contact design suited for frequent plug/unplug in field-service or test equipment. The Tape & Reel packaging and pick-and-place features confirm it was designed for automated SMT assembly.

Frequently asked questions

Where can I buy the ZX62-B-5PA today?

The ZX62-B-5PA is obsolete and not stocked in standard distribution. Submit an RFQ for your quantity and target lead time.

What is the replacement for the ZX62-B-5PA?

The most direct path is to evaluate current Hirose ZX series USB micro-B receptacles, which share the same 5-contact, USB 2.0, SMT right-angle footprint. Confirm the specific replacement order code against your board layout and mating cable assembly.

What is the pinout of the ZX62-B-5PA?

The 5-contact pinout follows the standard USB micro-B configuration: VBUS (power), D-, D+, ID, and ground. The ID pin is typically left unconnected or tied to ground in standard USB 2.0 host applications.
