Hirose Electric Co Ltd ZX62WRD-B-5PC — USB / HDMI Cable Assemblies

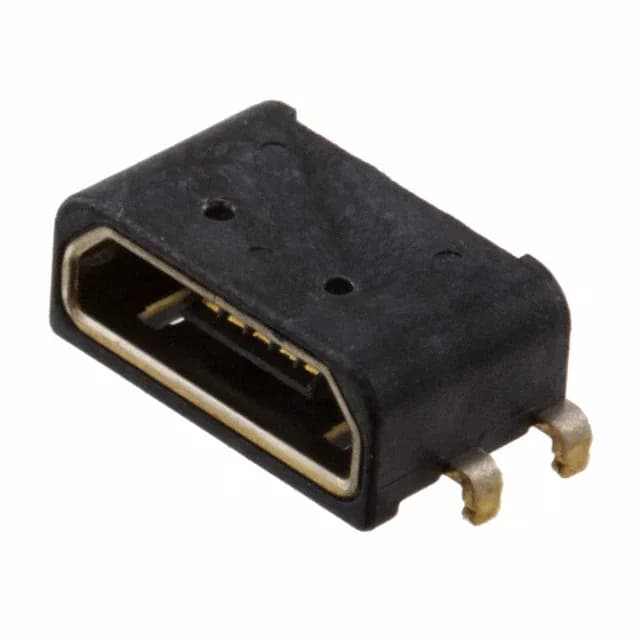

Hirose ZX62WRD-B-5PC USB 2.0 Micro B Receptacle, 10k Cycles

MPNZX62WRD-B-5PC
Active

Hirose ZX62W series USB 2.0 micro B receptacle, ZX62WRD-B-5PC, 5 contacts, shielded, splash proof, 1.8 A, 30 VAC, surface mount right-angle reverse mount, solder termination, gold contacts, UL94 V-0.

$1.4400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesZX62W
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026

Specifications

ZX62WRD-B-5PC key specifications
ParameterValue
SeriesZX62W
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB - micro B
Voltage - rated30VAC
Current rating1.8A
Positions5
IP ratingSplash Proof
Mounting featureHorizontal, Reverse Mount
Operating temperature-30°C ~ 85°C
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

ZX62WRD-B-5PC additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

The gold-plated contacts and 10,000 mating cycle rating tell you this is built for frequent plug/unplug duty, well beyond a typical consumer USB port.

What the 10,000 Mating Cycles and Splash Proof Rating Mean on Site

10,000 mating cycles is an order of magnitude above the 1,500–5,000 cycles you'd see on a standard micro USB connector. The splash proof rating (IPX4-class, though not explicitly IP-rated in the spec) means it can handle rain splash or a wet shop floor without failing, as long as the mating plug also carries a seal. On site, if you're re-terminating a cable, the receptacle itself is soldered to the board — not field-repairable without rework — so the high cycle life is your main reliability lever.

Both are 5-contact, shielded, splash-proof micro B receptacles with the same 1.8 A, 30 VAC rating and 10,000 cycle life. The key difference is mounting: the ZX62WRD-B-5PC uses a reverse-mount, right-angle SMT footprint, while the ZX62WD1-B-5PC is a bottom-mount, horizontal SMT part and adds a board lock feature for extra SMT solder-joint retention during reflow and vibration. If your board layout calls for the connector on the underside with a reverse cable exit, the ZX62WRD-B-5PC is the one; if you need a standard bottom-mount with a board lock for mechanical security, the ZX62WD1-B-5PC is the alternative.

Frequently asked questions

What is the pinout and orientation of ZX62WRD-B-5PC?

The ZX62WRD-B-5PC is a 5-contact USB 2.0 micro B receptacle with a standard micro B pinout (VBUS, D-, D+, ID, GND).

What is the mating cycle rating and shielding type of ZX62WRD-B-5PC?

The ZX62WRD-B-5PC is rated for 10,000 mating cycles and is fully shielded with a steel, stainless shell.
