FH12 0.50mm FFC / FPC Connector

78 variants · Hirose Electric Co Ltd All FFC / FPC Cable Assemblies by this brand → Browse FFC / FPC Cable Assemblies category →

About the FH12 0.50mm FFC / FPC Connector

IC Source Direct is a China connector distributor, supplier and independent procurement agent for FH12 0.50mm FFC / FPC Connector components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The Hirose Electric Co Ltd FH12 0.50mm FFC / FPC Connector series groups 78 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common actuator material of Polyphenylene Sulfide (PPS), cable end type of Straight and contact finish of Gold. Variants differ by actuator color, connector (Contact type) and features, so you can match the exact actuator color your application requires using the selection guide below.

Select a variant by

Actuator color: - · Brown
Connector (Contact type): Contacts, Bottom · Contacts, Vertical - 1 Sided
Features: Solder Retention, Zero Insertion Force (ZIF) · Zero Insertion Force (ZIF)
Height above board: 0.079\" (2.00mm) · 0.142\" (3.60mm)
Housing color: - · Beige
Mating cycles: - · 20
Mounting: Surface Mount · Surface Mount, Right Angle
Operating temperature: -40°C ~ 85°C · -40°C~85°C

Shared specifications

Actuator material: Polyphenylene Sulfide (PPS)
Cable end type: Straight
Contact finish: Gold
Contact finish thickness: -
Contact material: Phosphor Bronze
Current rating: 0.5A
FFC, FCB thickness: 0.30mm
Flat flex type: FFC, FPC
Housing material: Polyamide (PA), Nylon
Locking feature: Flip Lock
Material flammability rating: UL94 V-0
Termination: Solder

Variant comparison

Parameter	FH12-10(4)SA-1SH(55)	FH12-10S-0.5SH(55)	FH12-10S-0.5SVA(54)	FH12-11S-0.5SH(55)	FH12-11S-1SH(55)	FH12-12S-0.5SH(55)
Actuator color	Brown	Brown	-	Brown	Brown	Brown
Connector (Contact type)	Contacts, Bottom	Contacts, Bottom	Contacts, Vertical - 1 Sided	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom
Features	Solder Retention, Zero Insertion Force (ZIF)	Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Zero Insertion Force (ZIF)
Height above board	0.079\" (2.00mm)	0.079\" (2.00mm)	0.142\" (3.60mm)	0.079\" (2.00mm)	0.079\" (2.00mm)	0.079\" (2.00mm)
Housing color	Beige	Beige	-	Beige	Beige	Beige
Mating cycles	20	20	-	20	20	20
Mounting	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Operating temperature	-40°C ~ 85°C	-40°C~85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C

Request a quote on any FH12 0.50mm FFC / FPC Connector part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

About Hirose Electric Co Ltd FH12 0.50mm FFC / FPC Connector Sourcing

What buyers ask when they search FH12 0.50mm FFC / FPC Connector FFC Jumper Cable Pitch Conductors Length.

Common questions

What is the FH12 0.50mm FFC / FPC Connector used for?
How do I select the correct part number within the FH12 0.50mm FFC / FPC Connector series?
What are the key technical specifications for the FH12 0.50mm FFC / FPC Connector?
Where can I find the FH12 0.50mm FFC / FPC Connector datasheet and order from authorized distributors?

All variants

16 products

FH12-10(4)SA-1SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.039\" (1.00mm)

Ref. price$1.1100

Lead time on requestGet quote

FH12-10S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR); Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.6100

Lead time on requestGet quote

FH12-10S-0.5SVA(54)

Hirose Electric Co Ltd

Surface MountTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.2300

Lead time on requestGet quote

FH12-11S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.6400

Lead time on requestGet quote

FH12-11S-1SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.039\" (1.00mm)

Ref. price$1.4400

Lead time on requestGet quote

FH12-12S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.7200

Lead time on requestGet quote

FH12-12S-0.5SVA(54)

Hirose Electric Co Ltd

Surface MountTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.8500

Lead time on requestGet quote

FH12-12S-1SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR); Cut Tape (CT)0.039\" (1.00mm)

Ref. price$1.3900

Lead time on requestGet quote

FH12-13S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.7700

Lead time on requestGet quote

FH12-13S-0.5SVA(54)

Hirose Electric Co Ltd

Surface MountTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.3600

Lead time on requestGet quote

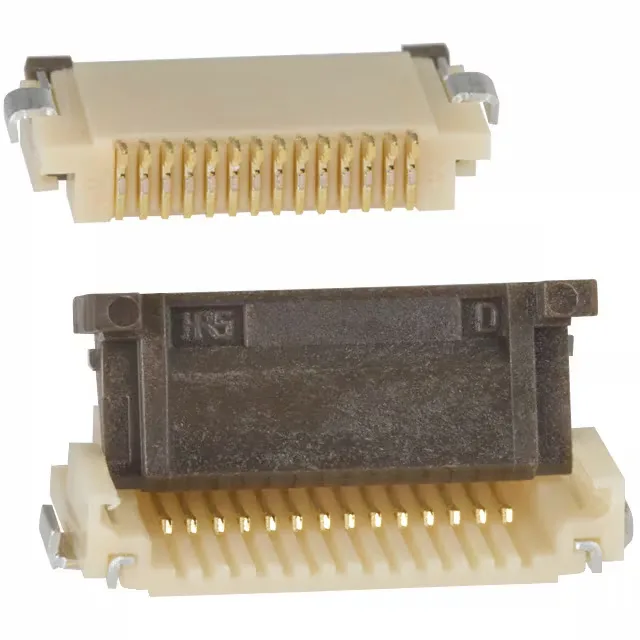

FH12-14S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR); Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.8000

Lead time on requestGet quote

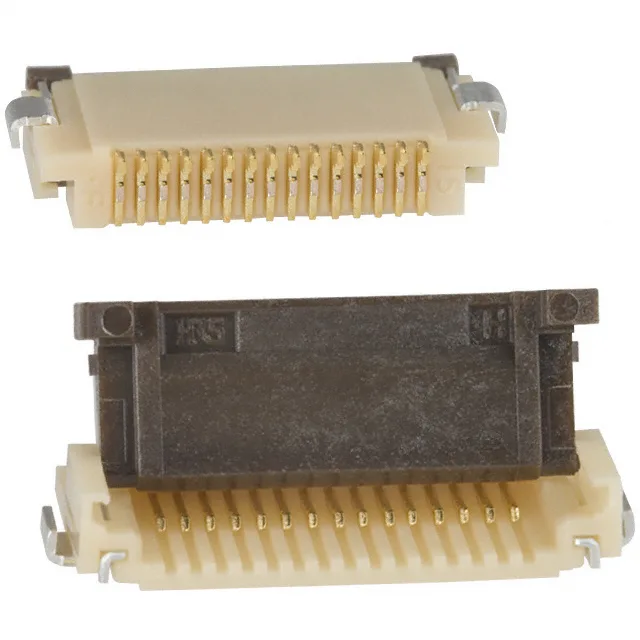

FH12-15S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR); Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.8500

Lead time on requestGet quote

FH12-15S-0.5SVA(54)

Hirose Electric Co Ltd

Surface MountTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.4500

Lead time on requestGet quote

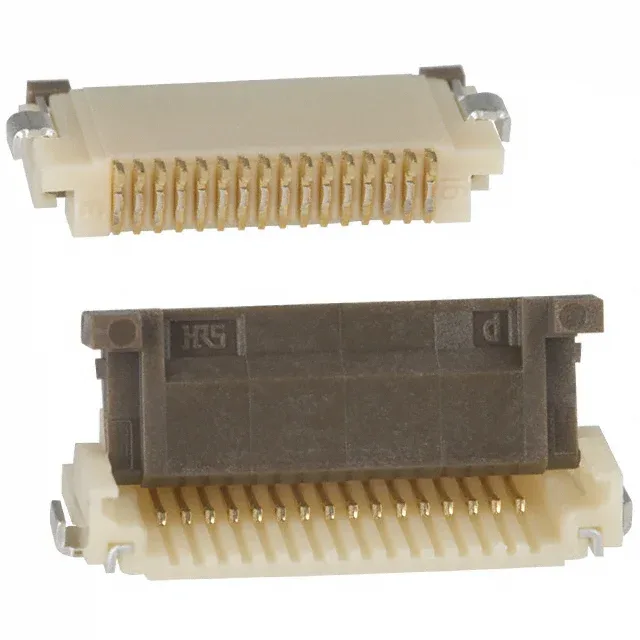

FH12-16S-0.5SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.8800

Lead time on requestGet quote

FH12-16S-0.5SVA(54)

Hirose Electric Co Ltd

Surface MountTape & Reel (TR) Cut Tape (CT)0.020\" (0.50mm)

Ref. price$1.5000

Lead time on requestGet quote

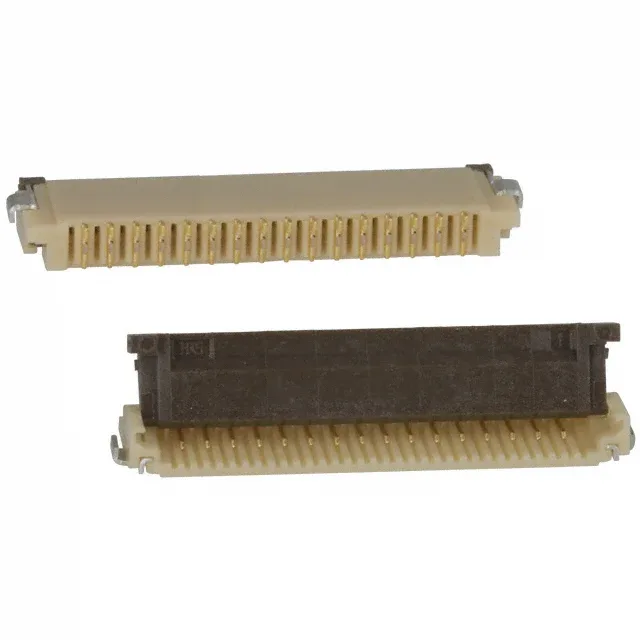

FH12-16S-1SH(55)

Hirose Electric Co Ltd

Surface Mount, Right AngleTape & Reel (TR) Cut Tape (CT)0.039\" (1.00mm)

Ref. price$1.5300

Lead time on requestGet quote
