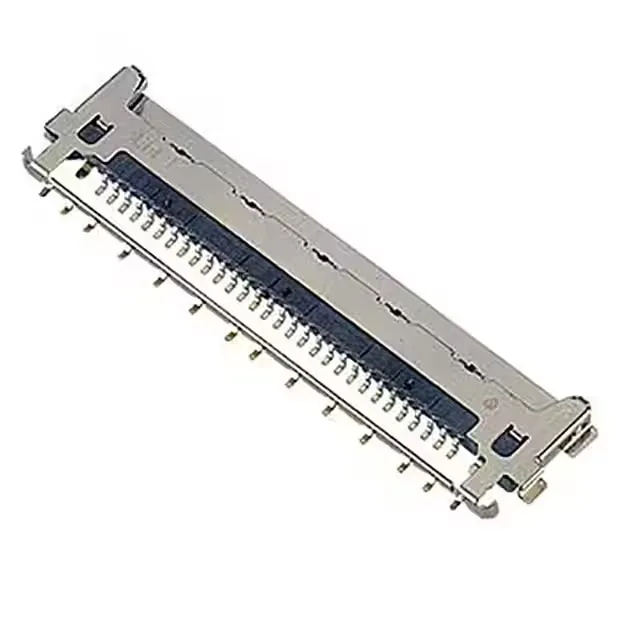

I-PEX 20849-020E-01
MPN20849-020E-01
Active
CABLINE-VS II RECEPTACLE 20P
$3.41Ref. price · indicative, final on quote
SeriesCABLINE®-VS II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CABLINE®-VS II |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 100V |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.032\" (0.81mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | EMI Shielded, Solder Retention |
| Termination | Solder |
| Mating cycles | 30 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| Positions | 20 |
| Contact finish thickness | 1.25µin (0.03µm) |
