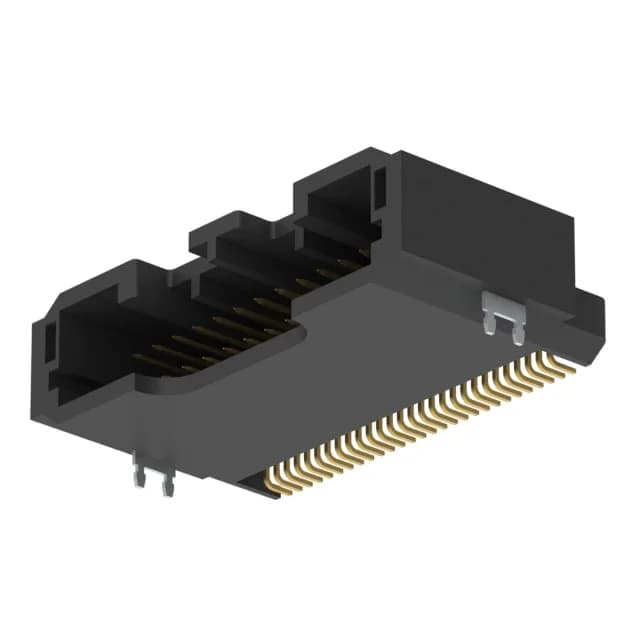

IRISO USA Inc. IMSA-13065B-2-28Y902
MPNIMSA-13065B-2-28Y902
Active
HEADER SMT RA 28POS KEY-C
$1.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series13065B
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 13065B |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.366\" (9.30mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
