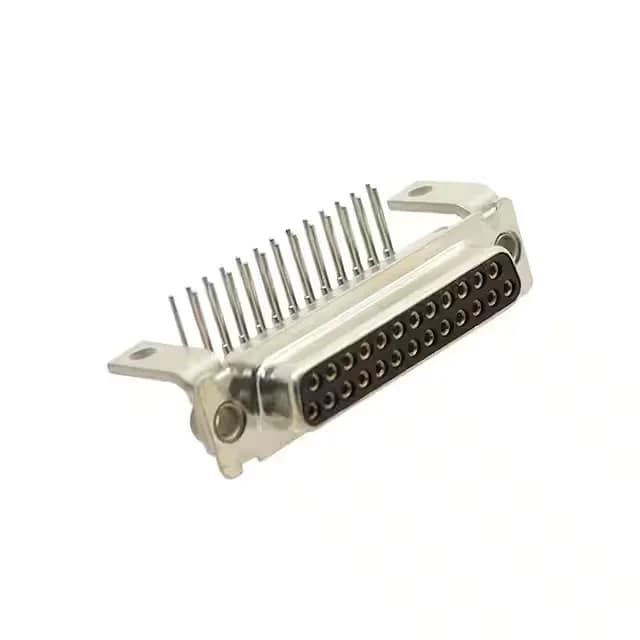

ITT Cannon, LLC DB-25S-1AFN-A197
MPNDB-25S-1AFN-A197
Active
$19.9400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Original D |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 7.5A |
| Contact form | Machined |
| Wire gauge | 20-28 AWG |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C~125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polycyclohexylenedimethylene Terephthalate (PCT) |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin-Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | Flash |
