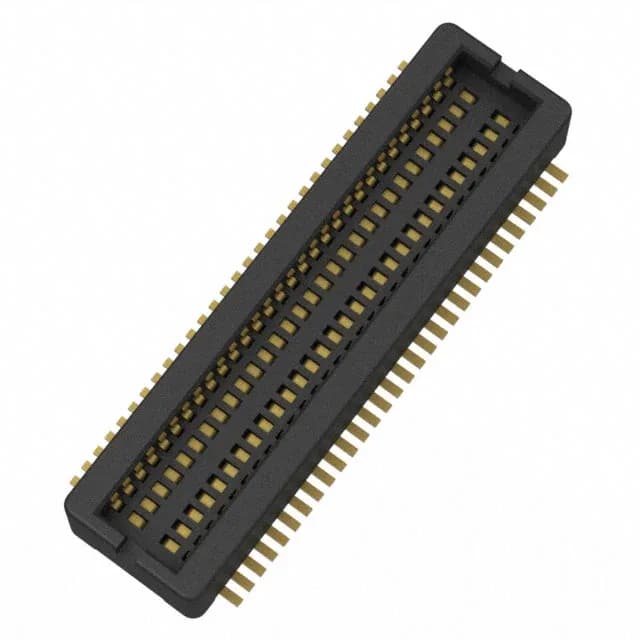

JAE Electronics AC01S080WA1R3000
MPNAC01S080WA1R3000
Active
CONN RCPT 80POS SMD GOLD
$5.4500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAC01
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AC01 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.089\" (2.26mm) |
| Mated stacking heights | 2.5mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
