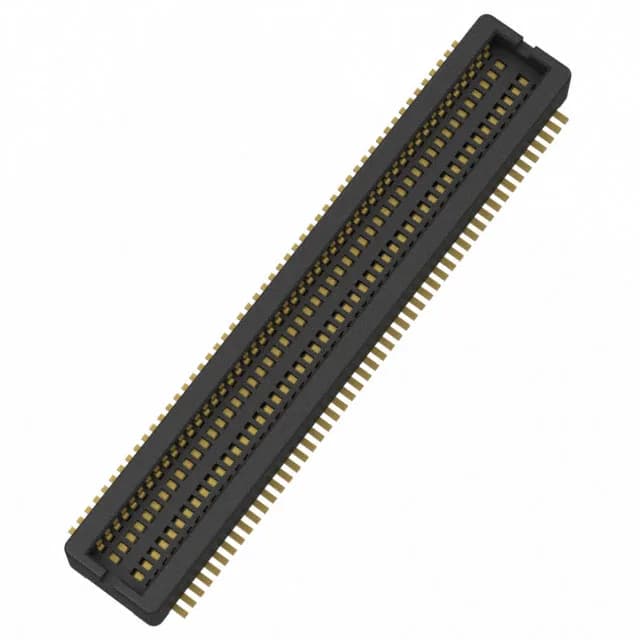

JAE Electronics AC01S100WA1R500
MPNAC01S100WA1R500
Active
CONN RCPT 100POS SMD GOLD
$9.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAC01
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AC01 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.089\" (2.26mm) |
| Mated stacking heights | 2.5mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 100 |
