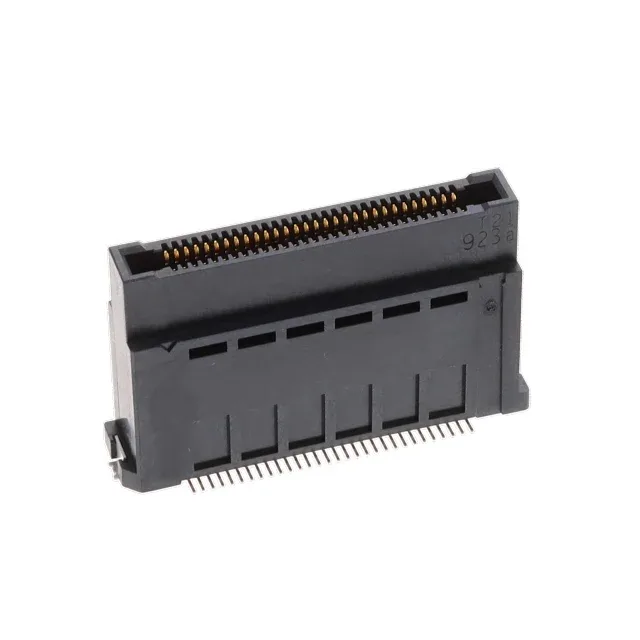

JAE Electronics AX01R060VANBR200
MPNAX01R060VANBR200
Active
RIGID SIDE B2B CONNECTOR, 60 POS
$7.23Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAX01
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AX01 |
| Mounting | Surface Mount |
| Connector type | Plug, Outer Shroud Contacts |
| Height above board | 0.654\" (16.60mm) |
| Mated stacking heights | 8mm ~ 30mm |
| Pitch | 0.025\" (0.64mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 60 |
| Contact finish thickness | 4.00µin (0.100µm) |
