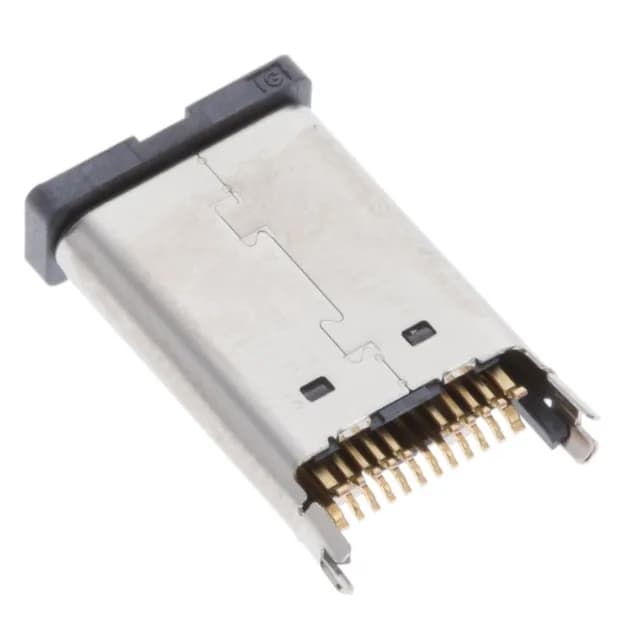

JAE Electronics DX07 USB-C (USB TYPE-C) plug, order code DX07P022AA6R2000, 24 (22+2 dummy) contacts, USB 3.2 Gen 2, 20 VAC, gold contact finish, shielded, board edge straddle mount, solder termination.
| Parameter | Value |
|---|---|
| Series | DX07 |
| Mounting | Board Edge, Straddle Mount |
| Connector type | USB-C (USB TYPE-C) |
| Voltage - rated | 20VAC |
| Positions | 24 (22+2 Dummy) |
| Mounting feature | Reversible |
| Operating temperature | -30°C ~ 80°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Gender | Plug |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Cover |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The DX07P022AA6R2000 is a 24-contact (22+2 dummy) USB-C plug from JAE Electronics' DX07 series, rated for USB 3.2 Gen 2 (10 Gbps) data rates. Gold-plated contacts, a shielded shell, and a rated mating cycle count of 10000 support repeated field connection and disconnection.
The DX07P022AA6R2000 is ROHS3 Compliant per JAE Electronics.
