JAE Electronics DX07B024JJ3R1600 — USB / HDMI Cable Assemblies

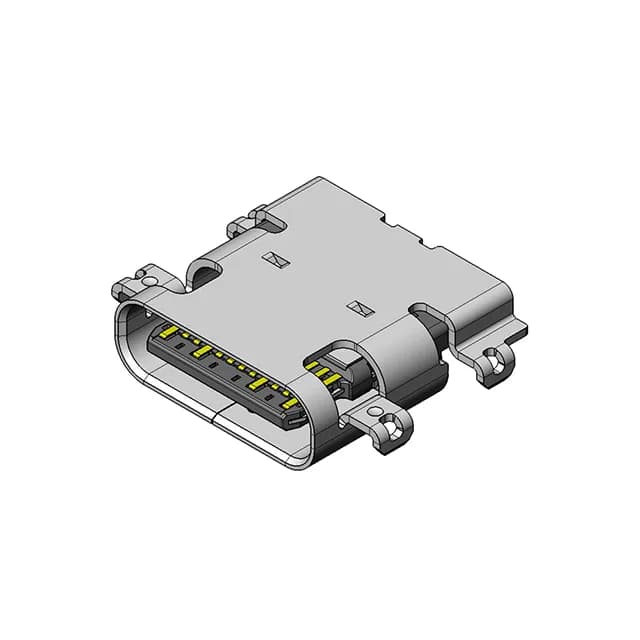

JAE DX07B024JJ3R1600 USB-C Receptacle, 24P, SMD RA

MPNDX07B024JJ3R1600
Active

JAE Electronics DX07 USB-C (USB TYPE-C) receptacle, order code DX07B024JJ3R1600, 24 contacts, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+), 20 V, 0.25 A / 1.25 A, gold contact finish, shielded, board cutout surface-mount right-angle, solder termination.

$2.6200Ref. price · indicative, final on quote
JAE Electronics DX07B024JJ3R1600 datasheet (PDF)
RoHSRoHS Compliant
SeriesDX07
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

DX07B024JJ3R1600 specifications
ParameterValue
SeriesDX07
MountingBoard Cutout, Surface Mount, Right Angle; Through Hole
Connector typeUSB-C (USB TYPE-C)
Voltage - rated20V
Current rating0.25A, 1.25A
Positions24
Mounting featureHorizontal, Mid Mount
Operating temperature-30°C ~ 80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Number of ports1

Product details

USB 3.2 Gen 2 receptacle with 24-circuit Type-C interface

The DX07B024JJ3R1600 is JAE Electronics' 24-contact USB-C receptacle in the DX07 series, supporting USB 3.2 Gen 2 (10 Gbps) data rates through its shielded shell and gold-plated contacts. Rated 20 V with a dual current rating of 0.25 A on signal contacts and 1.25 A on power contacts, the connector mates in a horizontal mid-mount orientation and is specified for 10000 mating cycles.

Position count and mounting across the DX07 series

Within the DX07 series the DX07B024JJ3R1600 shares the same 24-contact USB-C interface and horizontal mid-mount footprint as siblings DX07B024JJ2R1500 and DX07B024XJ1R1300 — the selection among them turns on packaging (Tape & Reel vs Cut Tape) and pick-and-place feature availability rather than functional specs.

Frequently asked questions

What is the mounting orientation and termination style of this USB-C receptacle?

The DX07B024JJ3R1600 mounts horizontally (mid-mount) via board cutout, with surface-mount right-angle solder termination. The through-hole feature provides additional mechanical retention.

What compliance documentation does JAE Electronics provide for the DX07B024JJ3R1600?

The DX07B024JJ3R1600 is RoHS compliant per JAE Electronics lifecycle records. No UL or IEC certifications are listed in the available specifications.
